Standard heating plant
Steel frame and panels – built for the site, with or without an integrated fuel store.
- Frame
- Steel, with panels
- Fuel store
- With or without
The image shows the same heating plant twice: on the left as a 3D drawing, on the right as a finished building on a winter night, with the door open into the boiler room.
Boiler house for wood chips and pellets, 200 kW–2 MW · Biotherm Heating plants
The whole boiler room in a building of its own – drawn in 3D before manufacture and handed over ready to run. Developed in an Arctic climate, built to last.
02Turnkey heating plant
Why aheating plant?
The boiler and the technology, ideally the fuel store too, in a building of their own – engineered for the site and handed over ready to run.
Output range200 kW–2 MW, with PelleTech IDRO or AERO.
- 01The boiler room moves outThe boiler, the technology and ideally the fuel store too, in a building of their own.
- 02Ready when it arrivesWe build it in-house. It is tested and fine-tuned before delivery and set in place by crane.
- 03Everything from one supplierChimney, buried pipework, boiler, burner and fire protection – supplied so that all the parts work together.
- 04Drawn for the siteEvery heating plant is calculated, drawn and engineered in 3D for the individual customer.
- 05Can be extendedFor example with backup boilers and distribution pumps.
03The parts
Boiler, fuel store and tank.
The heating plant comes complete with all three – and each part is also available on its own.
The heat gets its own house.
A ready-made boiler room, designed in 3D and delivered with insulated pipes, documentation and training.
04Complete delivery
Your boiler roomin one delivery.

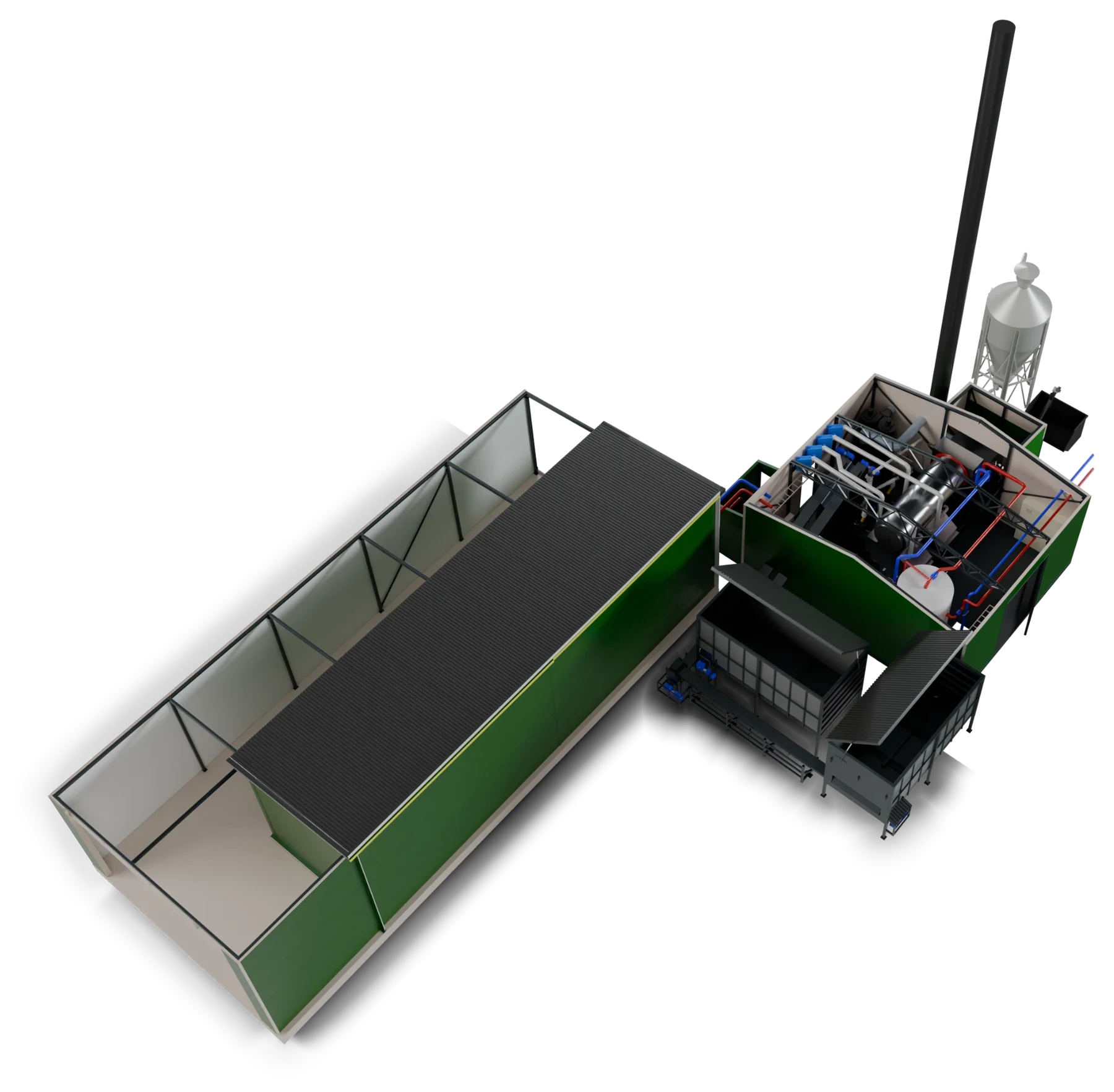

We manufacture the heating plant in-house – in a standard container or custom-built, with a PelleTech IDRO or AERO as the boiler.
In place when it arrives
- Boiler with burnerFor burning various types of biofuel.
- Control and alarmsInternet-based control, operator panel and alarms.
- SafetyComplete emergency protection and the necessary safety equipment.
- Heat exchangerBrazed plate heat exchanger with primary circuit pump.
- Flue gasesFlue gas cleaning and variable-speed flue gas fan.
- AutomationConvection-section cleaning, ash discharge and lambda control.
From drawing to heat
- 01
Engineering
Calculations and drawings in 3D.
- 02
In-house manufacturing
Tested and fine-tuned before delivery.
- 03
The lift

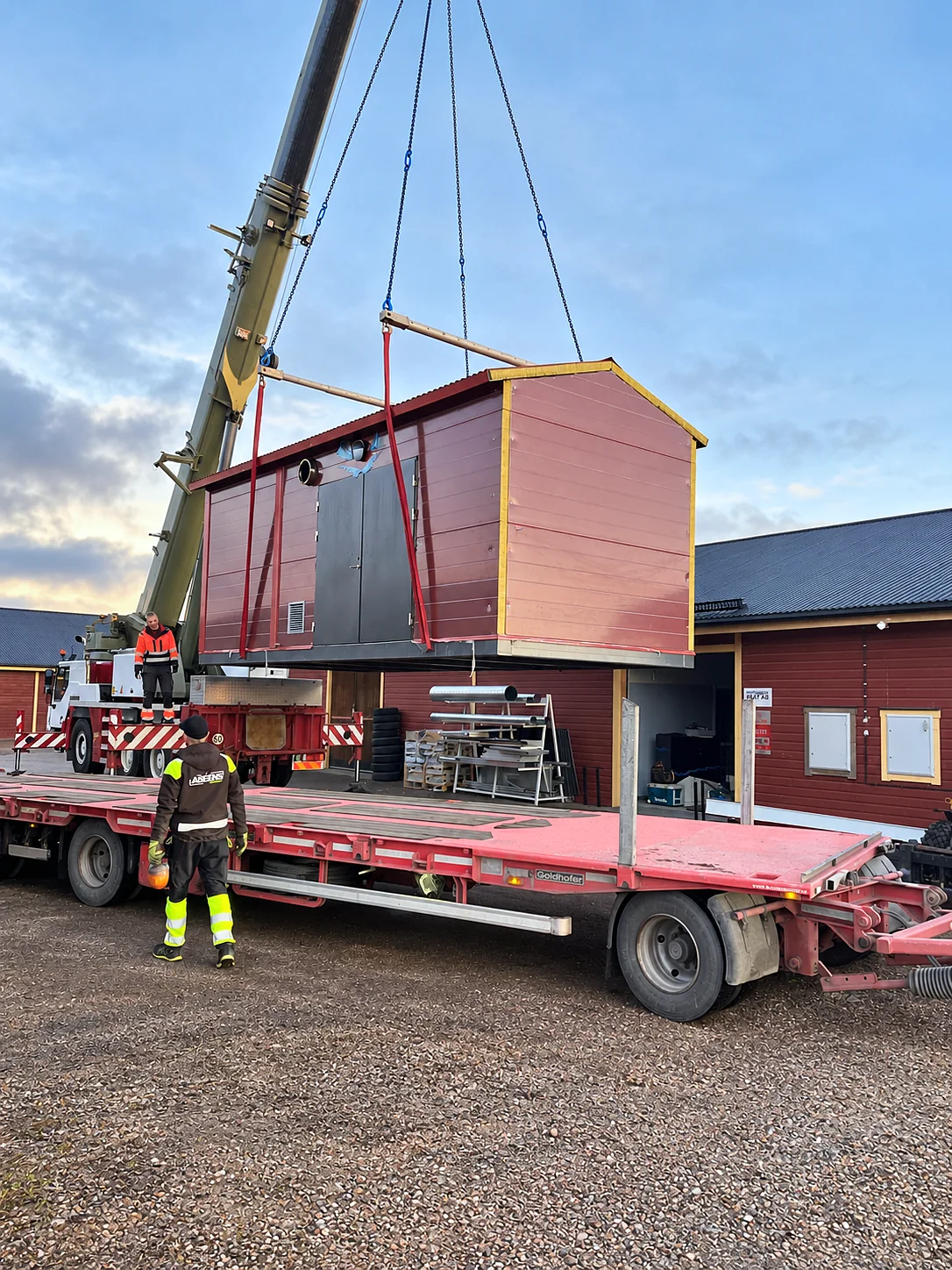

Set in place by crane.
- 04
Site installation
Biotherm or local contractors.
- 05
Commissioning
Fine-tuning and training.
Included in the deliveryInsulated pipes · Labelled components · Documentation · Commissioning · Training
05The family business
One contact.All the way.
We calculate your heating – and we are still here once it is running.
- Experience
- 50 years, since 1976
- Family business
- In its fourth generation
- Built to last
- Developed in an Arctic climate
- Close by
- Offices in Västerås and Luleå
06Inside
Inside a heating plant.

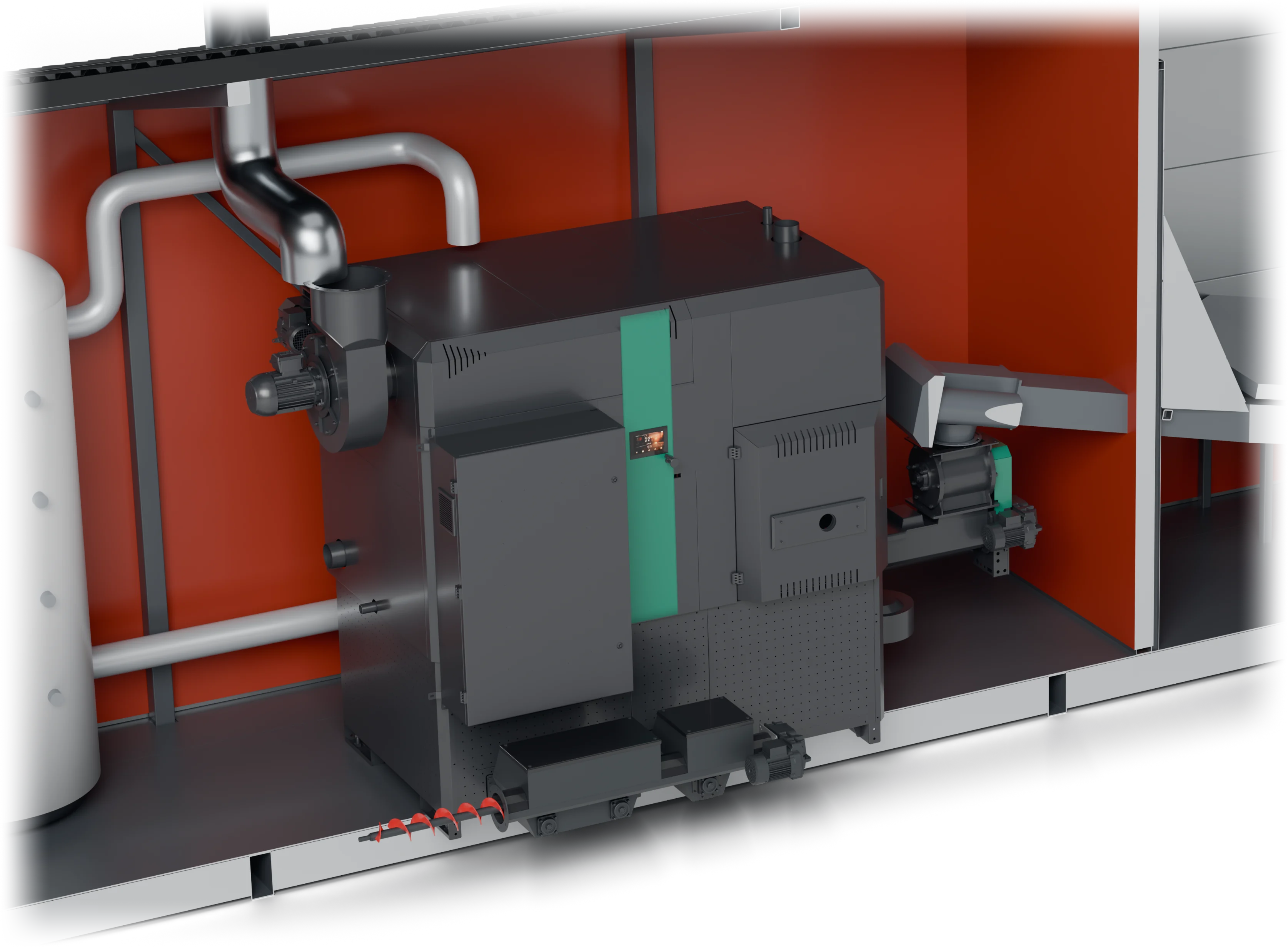

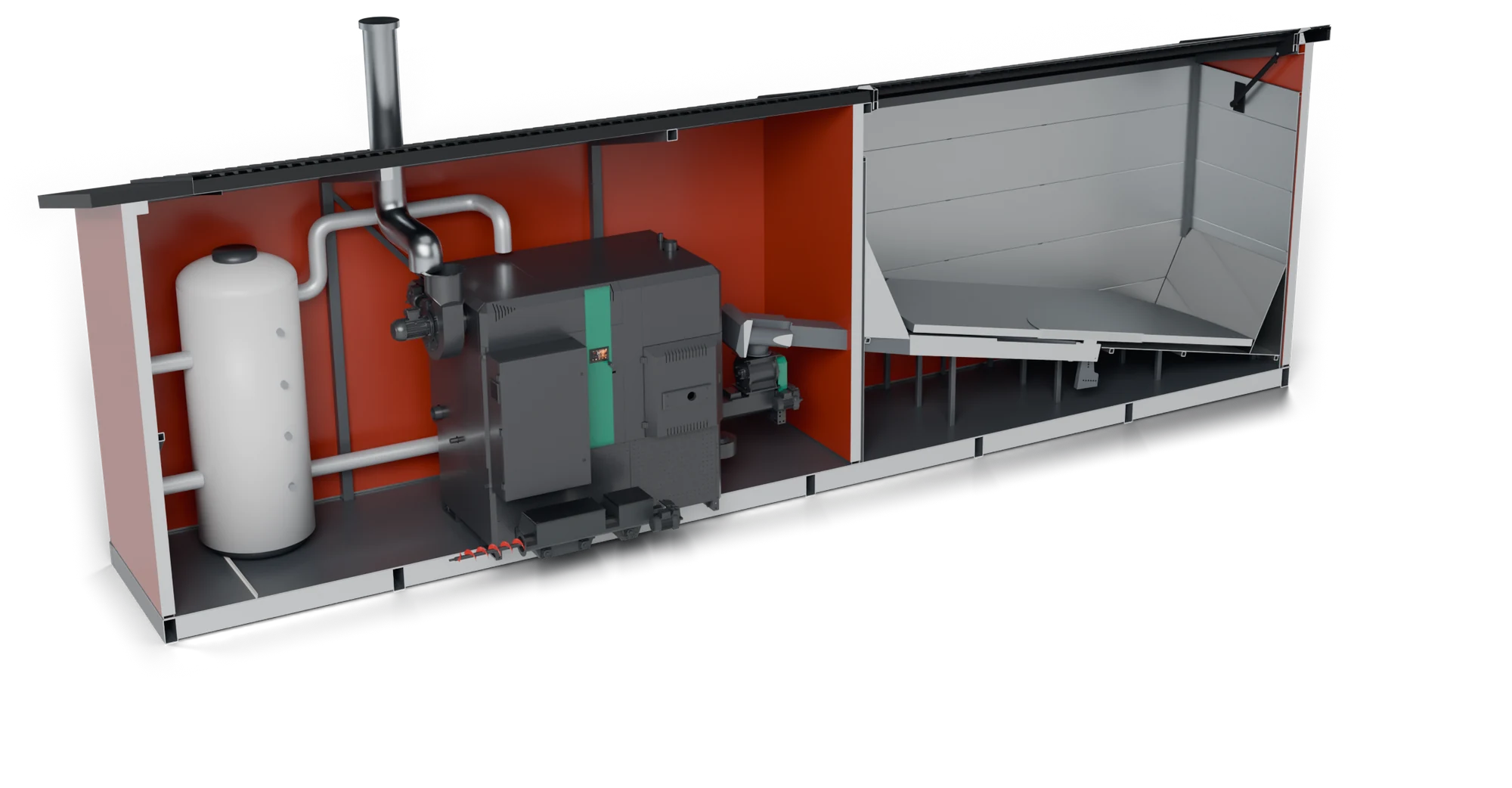

The boiler room and the fuel store in the same building. Scroll – the wall fades away and the cross-section from the CAD model appears: PelleTech IDRO 400 kW, accumulator tank and insulated pipes.
- 1The flue gas fanVariable-speed, regulates the negative pressure in the boiler.
- 2PelleTech IDROWater-based industrial boiler, here at 400 kW, with a touchscreen on the front.
- 3The feed systemScrew, rotary valve and stoker carry in the fuel, with burn-back protection.
- 4The spring agitatorIn the built-in fuel store, under the same roof as the boiler room.
07Control
The whole boiler roomon one screen.
Our own control systems are web-based and offer a wide range of controls and accessories.
- 01

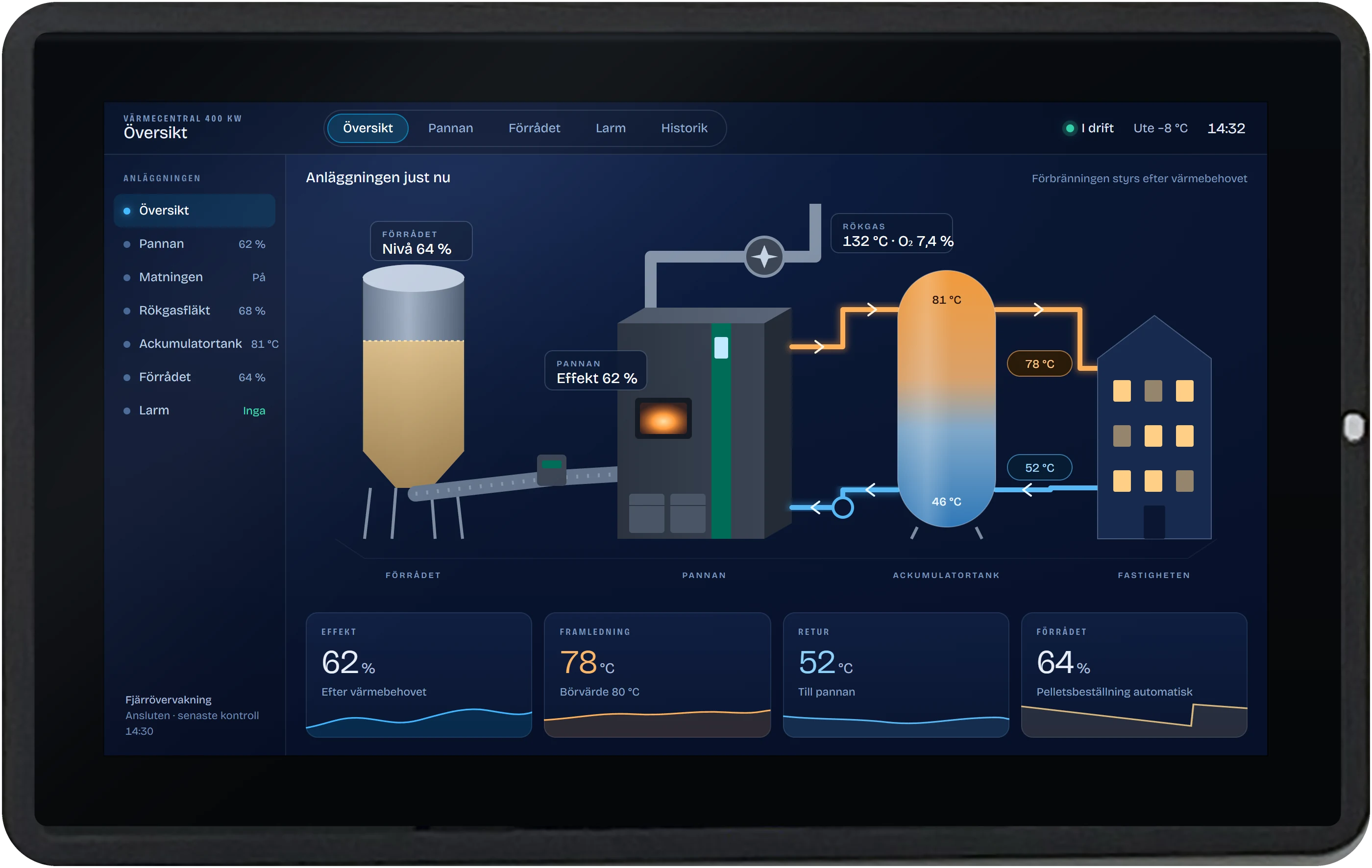

The touchscreen
Shows the entire plant in the control cabinet.
- 02
Demand-driven
Combustion follows the actual heat demand.
- 03
Via the internet
Monitoring, control and fault reporting.
- 04
Remote support
We monitor, guide and control together with your operating staff.
Eight controls and accessories
Safety
- Burn-back protection
- Emergency protection
Combustion
- Lambda control
- Variable-speed flue gas fan
- Thermostats
Operation
- Automatic cleaning and ash discharge
- Automatic pellet ordering
- Alarms and remote monitoring
Expandable. The plant can be extended, for example with backup boilers and distribution pumps.
08Versions
Our heatingplants.
Four ways to build the boiler room, all engineered for your site. Conditions on site mean that no two deliveries are the same.
02

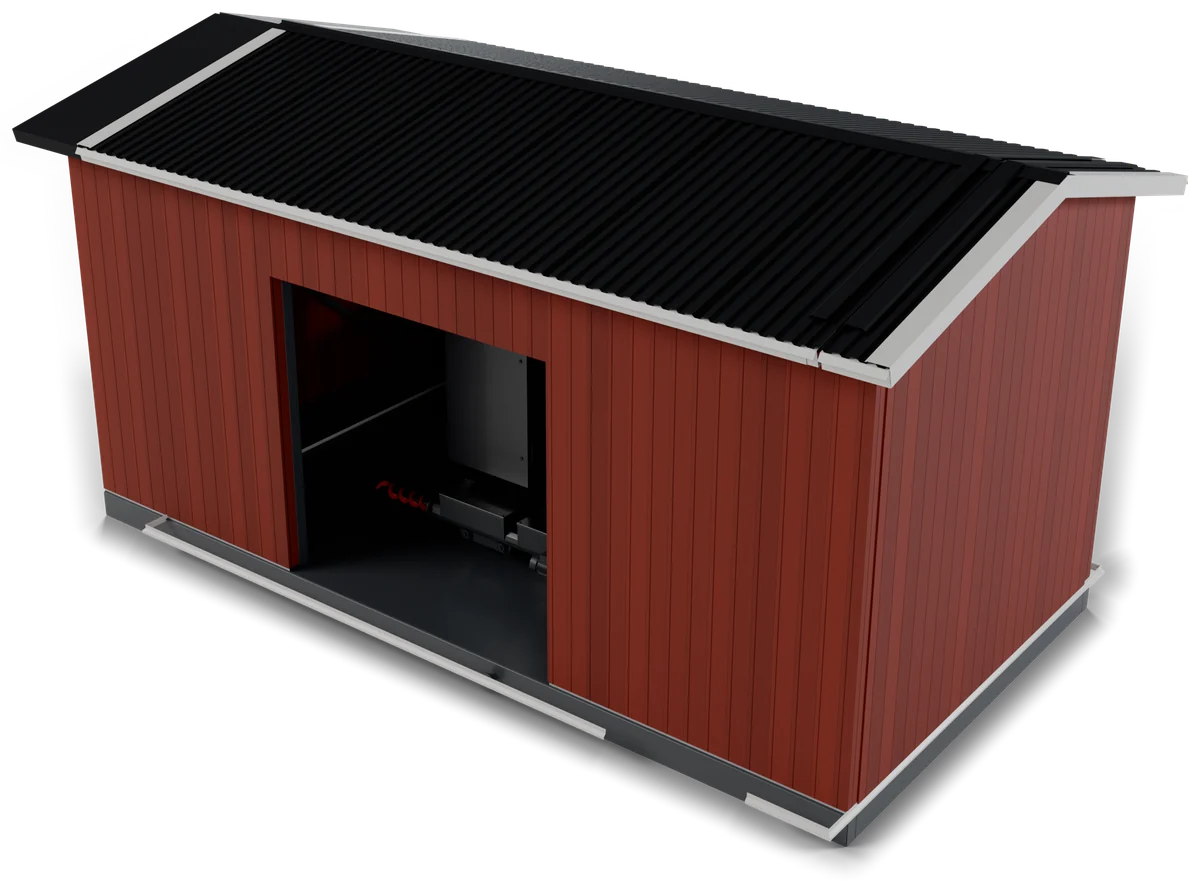

Timber-built heating plant
Built in timber, with colour and shape to suit the site and the architecture – blends into its surroundings.
- Frame
- Timber
- Facade
- To suit the site
03
Container plant

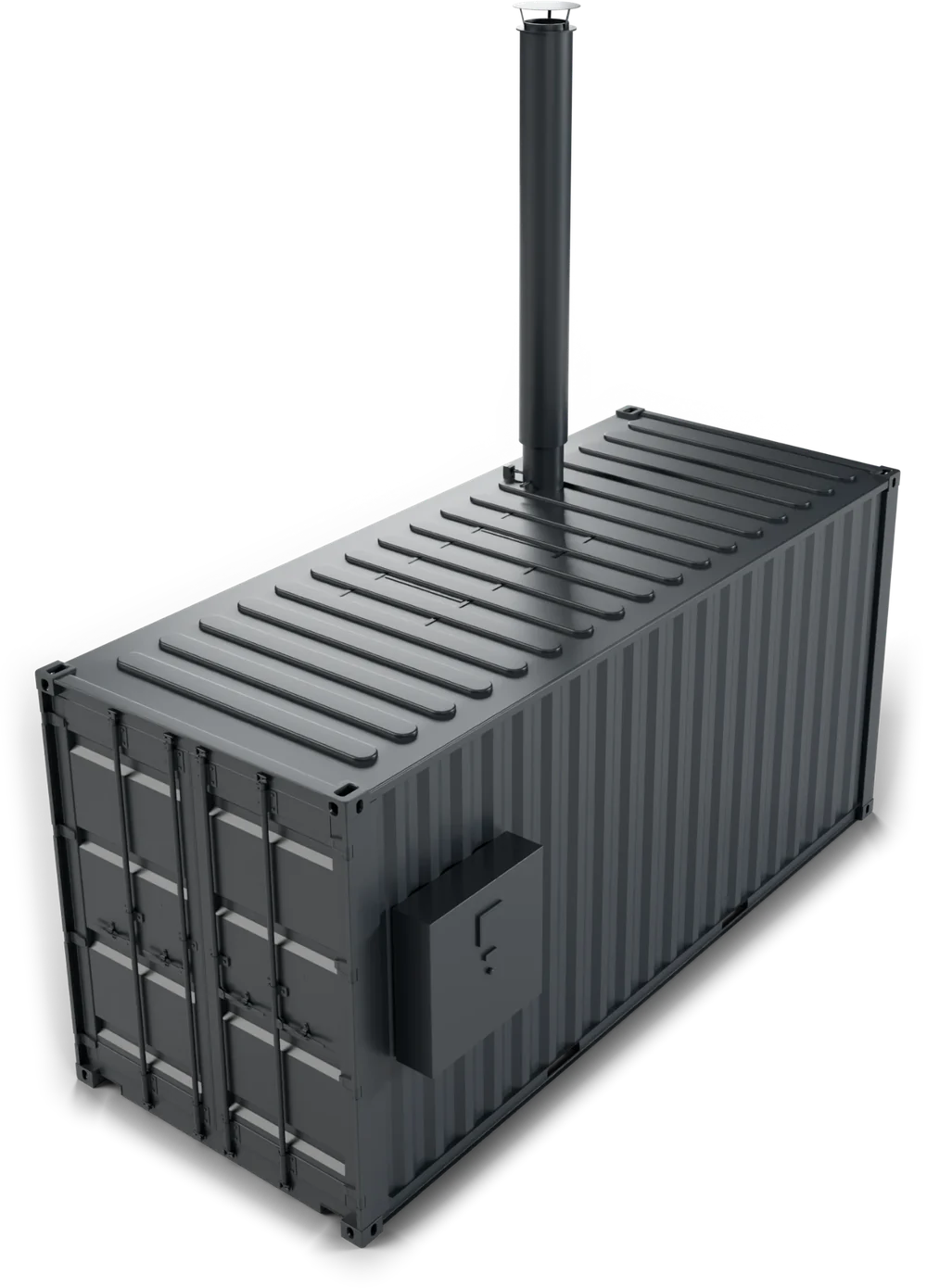

The boiler room in a standard container – delivered ready and lifted into place.
- Version
- Standard container
- Delivery
- Ready to lift into place
04

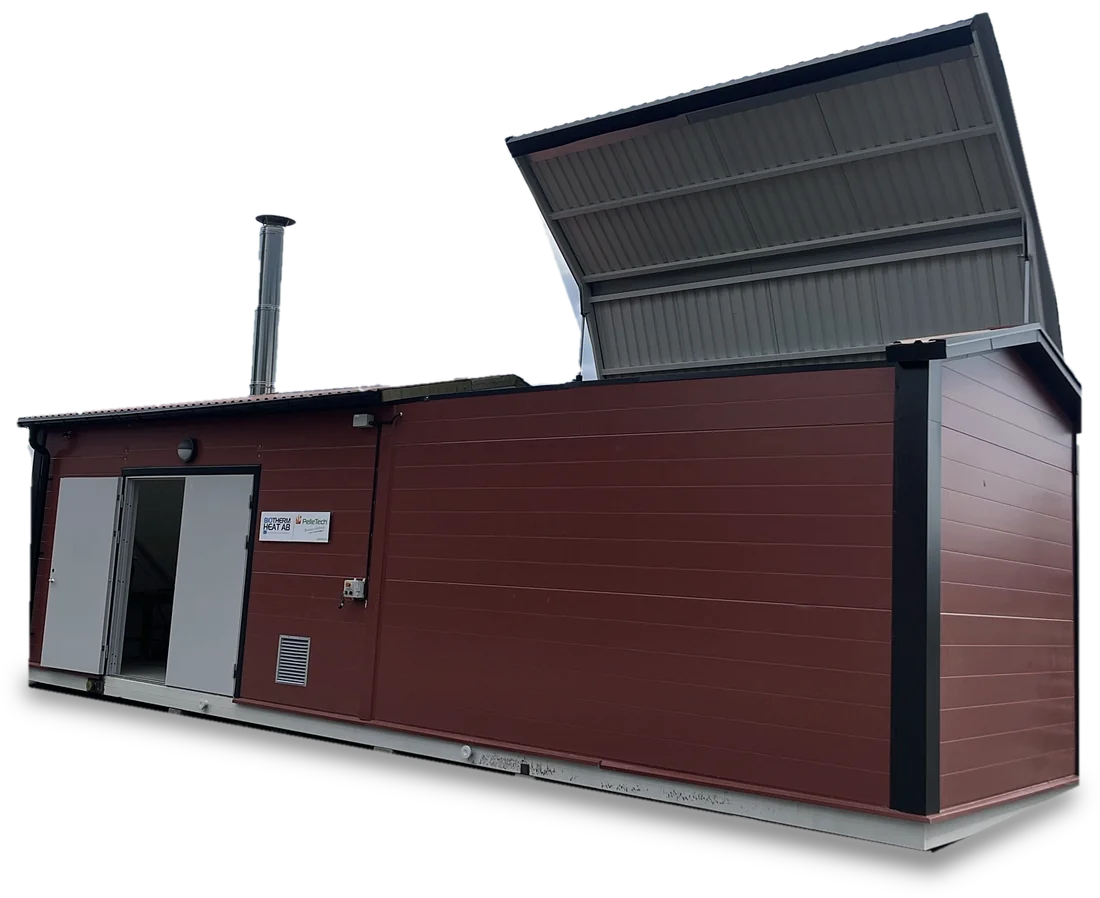

Biobox ALL INclusive
Built-in fuel store with a hydraulic roof hatch. Connect power, buried pipework and water and start it up – and it can be moved.
- Fuel store
- 17–30 m³
- Movable
- Yes
Delivered heating plants
09The boiler
Water or hot air.
The heating plant is built around a boiler from PelleTech, which is part of BWT. Biotherm is the general agent for PelleTech in Scandinavia.
PelleTech IDRO · Water-based
Industrial boiler, ready in place.
A water-based industrial boiler. It can be installed in an existing boiler room, delivered ready-made in a container or built into a heating plant – fixed or mobile, with a built-in fuel store.
- Output range
- 200 kW–4.6 MW
- Fuels
- Pellets, wood chips, residues and oil
PelleTech AERO · Hot air

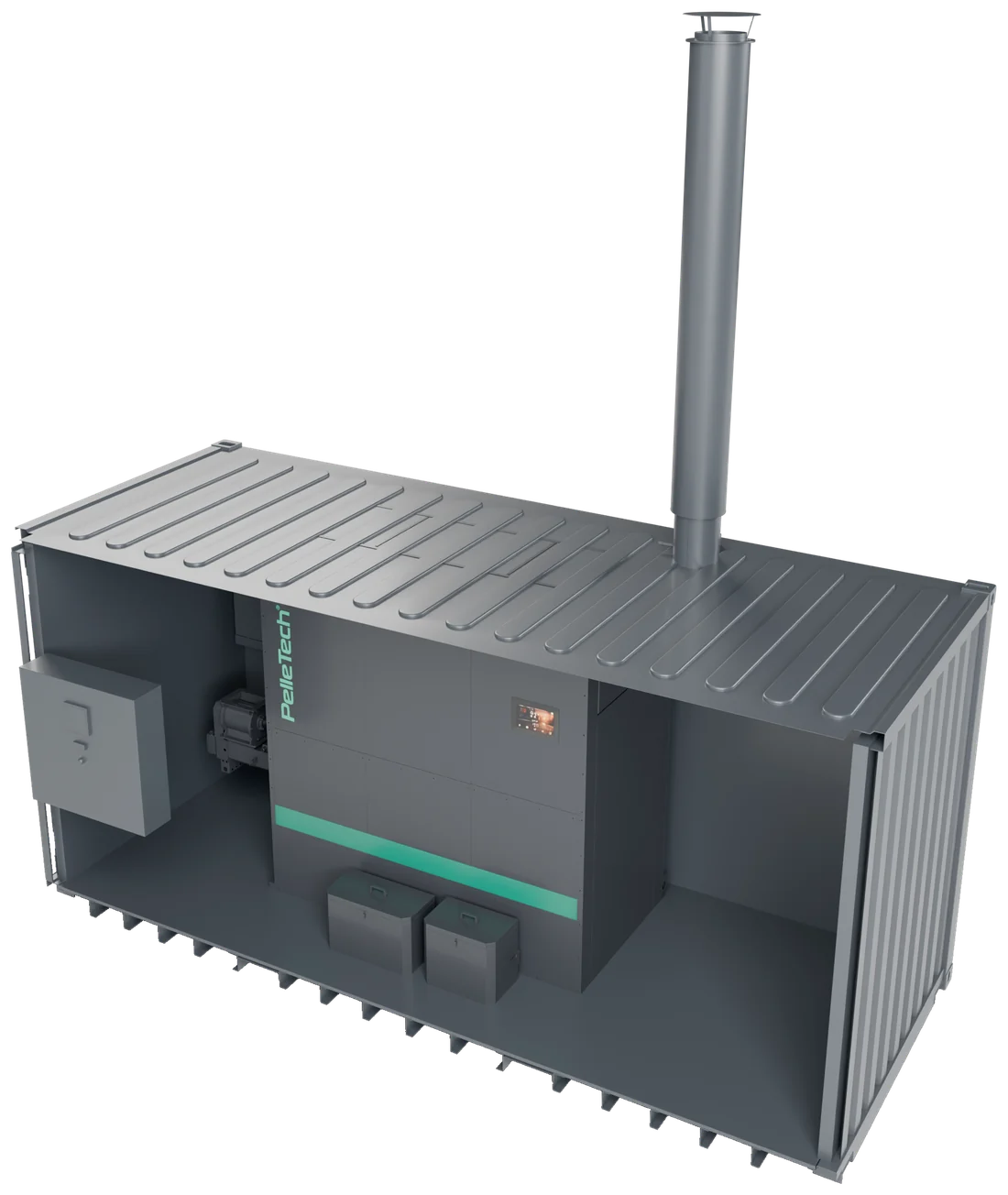

Hot air, ready in a container.
AERO heats air instead of water. The air is heated outside the premises and led in through ducts, with no flue gases indoors.
- For
- Industrial premises, greenhouses and drying
- Ash
- Removed automatically
No need for a heating plant? The boiler can also go in an existing boiler room. All wood chip boilers, 20 kW–4.6 MW
10Engineering in 3D
Every pipe drawnbefore it is built.

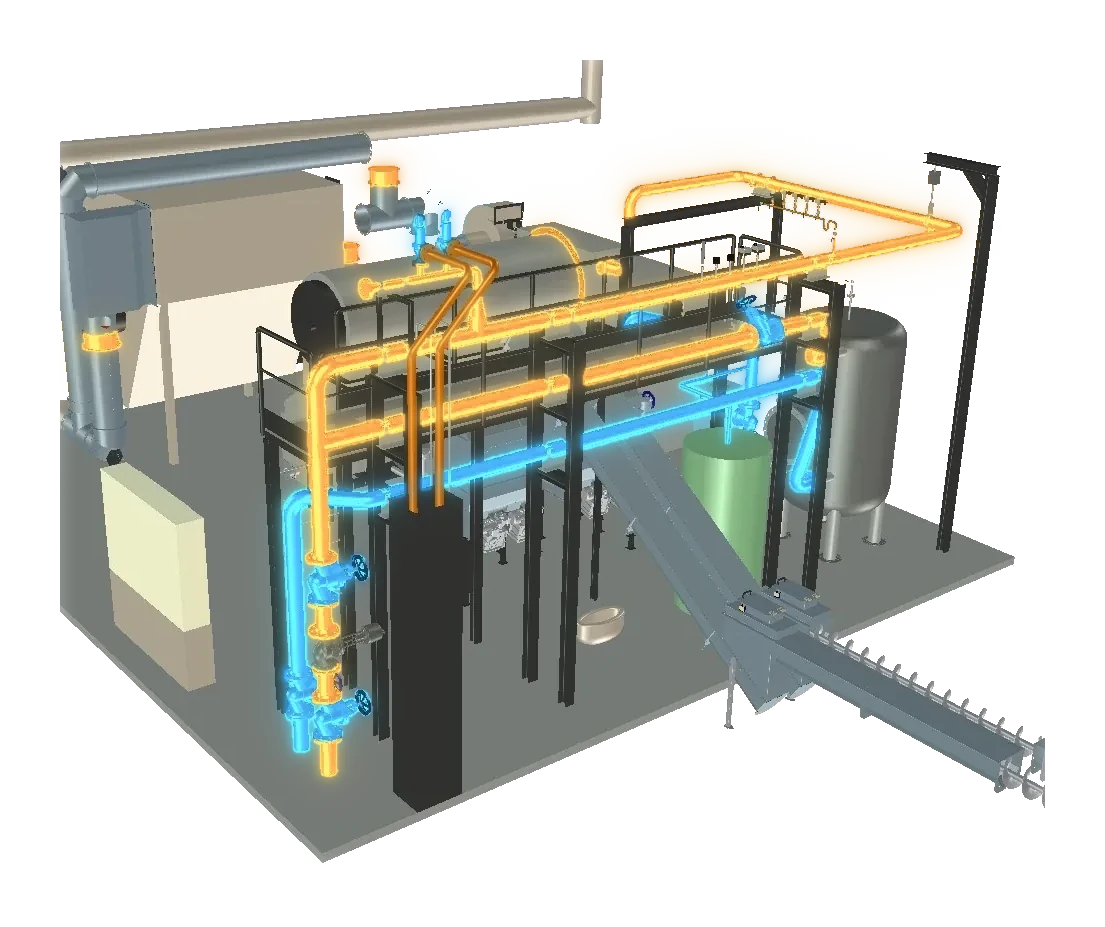

Every plant is calculated, drawn and engineered for the individual customer. Everything is drawn in 3D, so that the boiler, fuel store, tanks and pipes are sure to fit before anything is built.
- Heat-load calculation
- Free of charge – the first step.
- 3D drawings
- In IRONCAD. 3D CAD drawings and dimensioned site drawings are always included.
- System documentation
- For the entire plant.
- Operation and maintenance
- Instructions included.
- Insulated pipes
- And labelled components.
11Always included
Everything included.
We supply the entire installation – chimney, buried pipework, boiler, burner and fire protection – so that all the parts work together.
Guarantee
Function and performance guarantee on delivered plants.
Optional: service agreement with free support and our spare parts package.
- 01Turnkey heating plant
- 02Chimney
- 03Fully automatic boiler
- 04Automatic ash discharge
- 05Accumulator tank
- 06Commissioning and training
- 07Documentation and CE marking
The brochure
Everything about our heating plants in one brochure.
PDF · 16 pages · 2.6 MB
Free heat-load calculation
Let's calculate your heating.
We start with a needs analysis and a free heat-load calculation. Then we take responsibility for the entire installation, from fuel store to finished heat.
info@biothermheat.comVästerås · Luleå
