Scraper-floor store for wood chips
Hydraulics forthe large volumes.

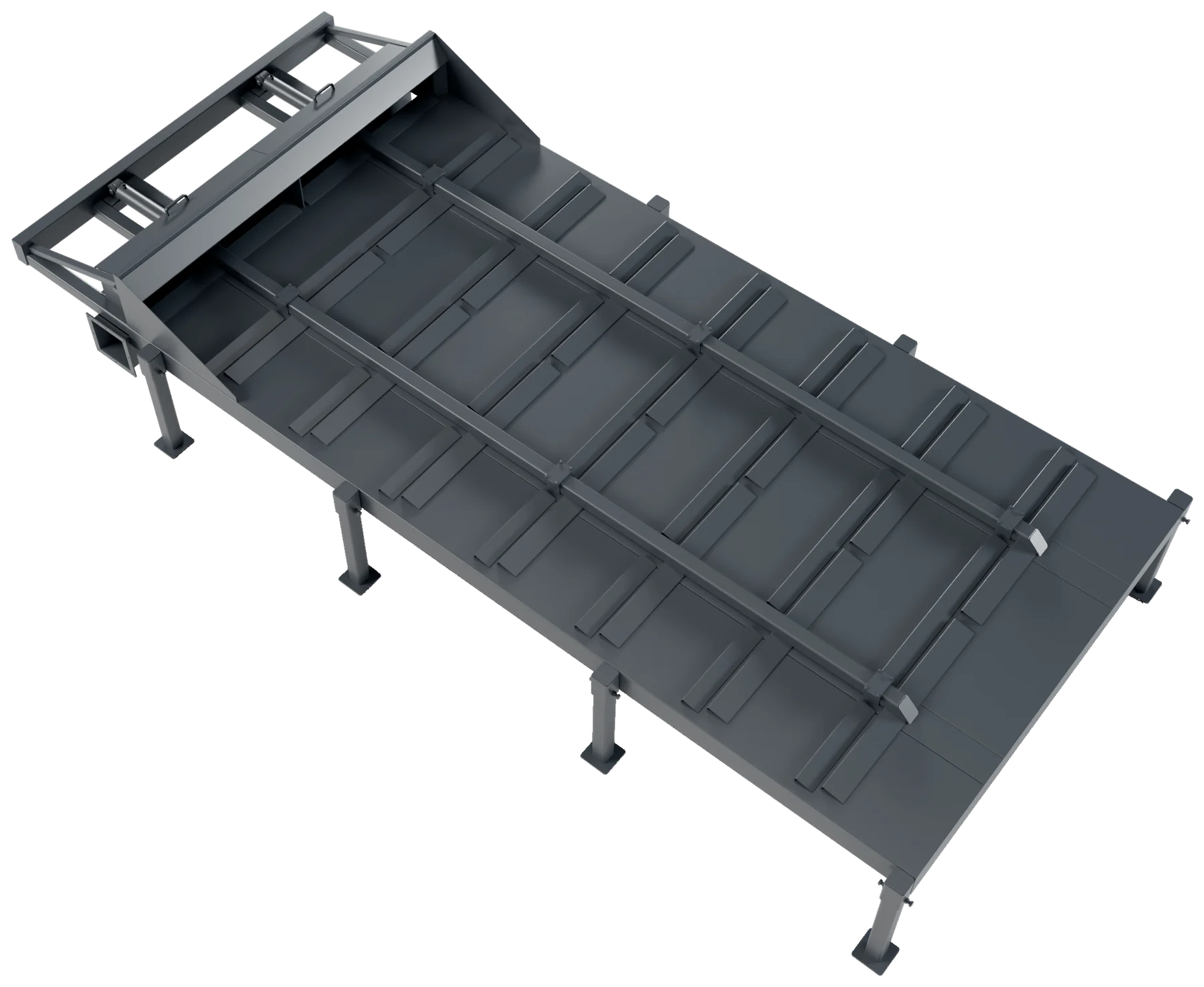

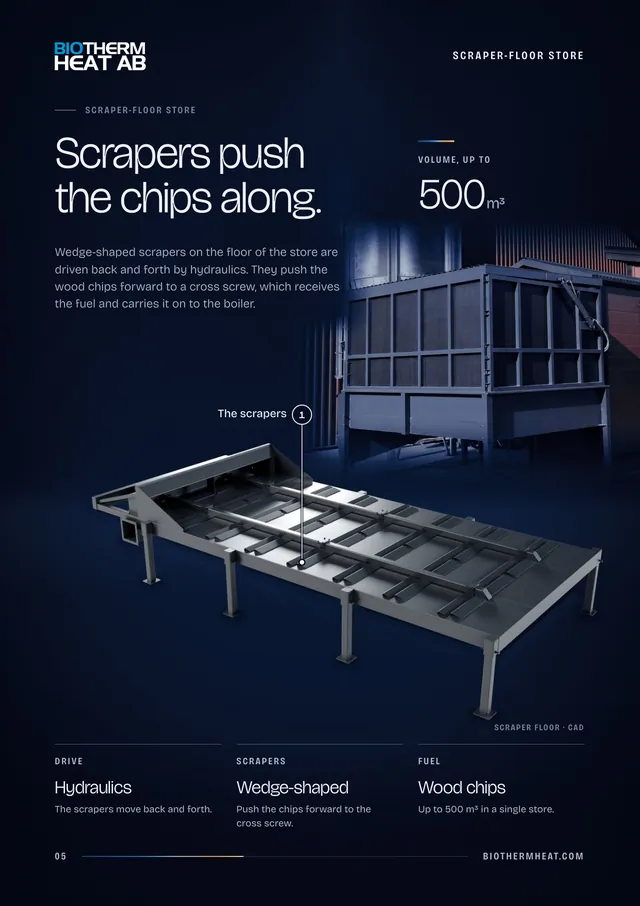

In a scraper-floor store, wedge-shaped scrapers on the floor of the store are driven back and forth by hydraulics. They push the wood chips to a cross screw, which receives the fuel and carries it on to the boiler.
Volume, up to500m³
- Drive
- Hydraulics
- Scrapers
- Wedge-shaped
- Discharge
- Cross screw
- Fuel
- Wood chips
01The principle
Hydraulic scrapers,back and forth.

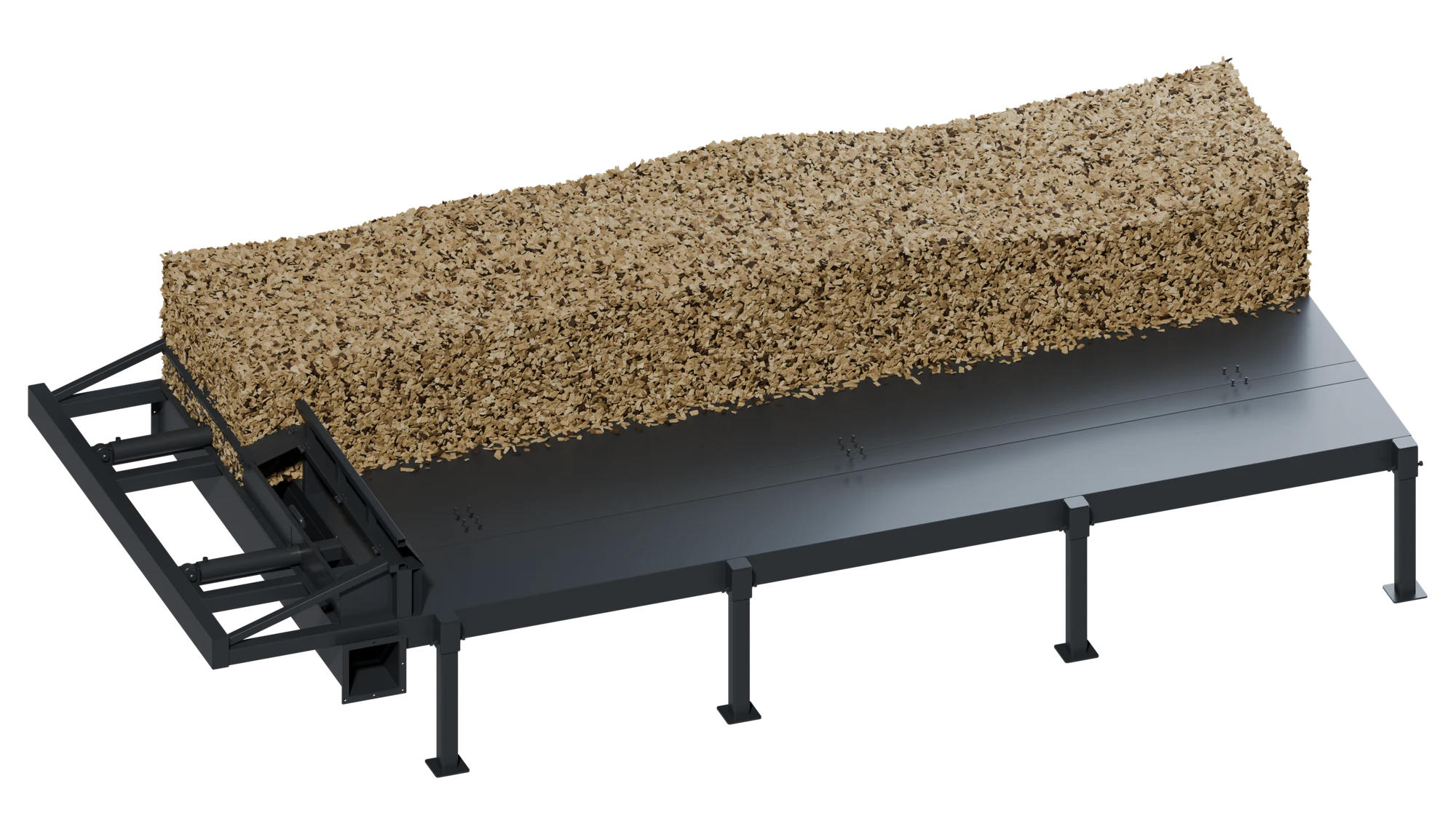

The scrapers move back and forth across the floor. The wood chips are pushed forward to the cross screw, which feeds them on to the boiler.
- 1The hydraulicsDrive the scrapers back and forth.

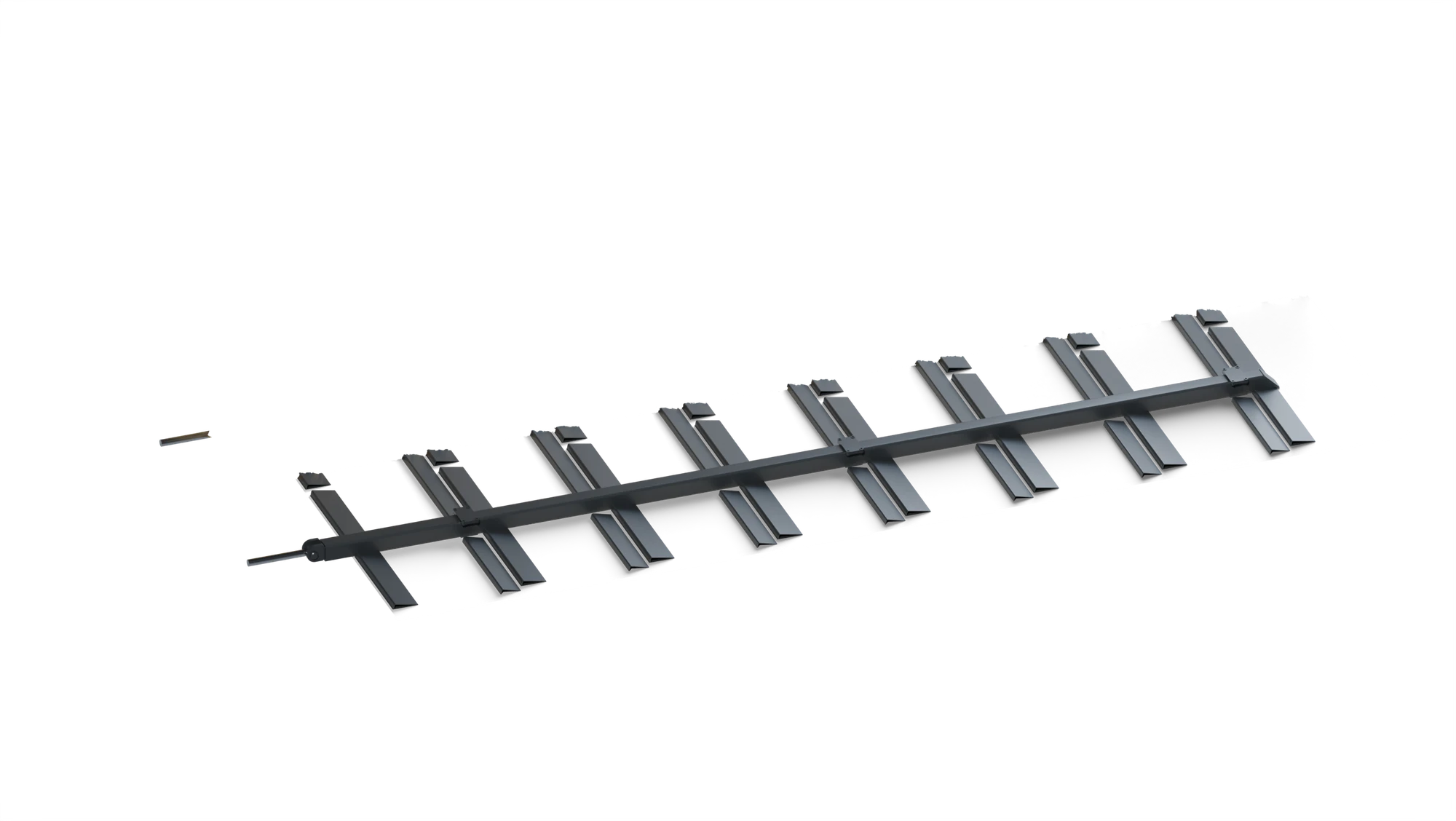

- 2The scrapersWedge-shaped. Push the wood chips forward to the cross screw.
- 3The cross screwReceives the fuel and carries it on to the boiler.
123
On the way to the boiler, the wood chips pass through a tight rotary valve, and the stoker screw feeds them into the burner. Larger chip sizes call for larger screws – industrial boilers have feed screws of up to 180 mm. The feed system from store to boiler
02The scraper floor
Wood chip storesfor large volumes.

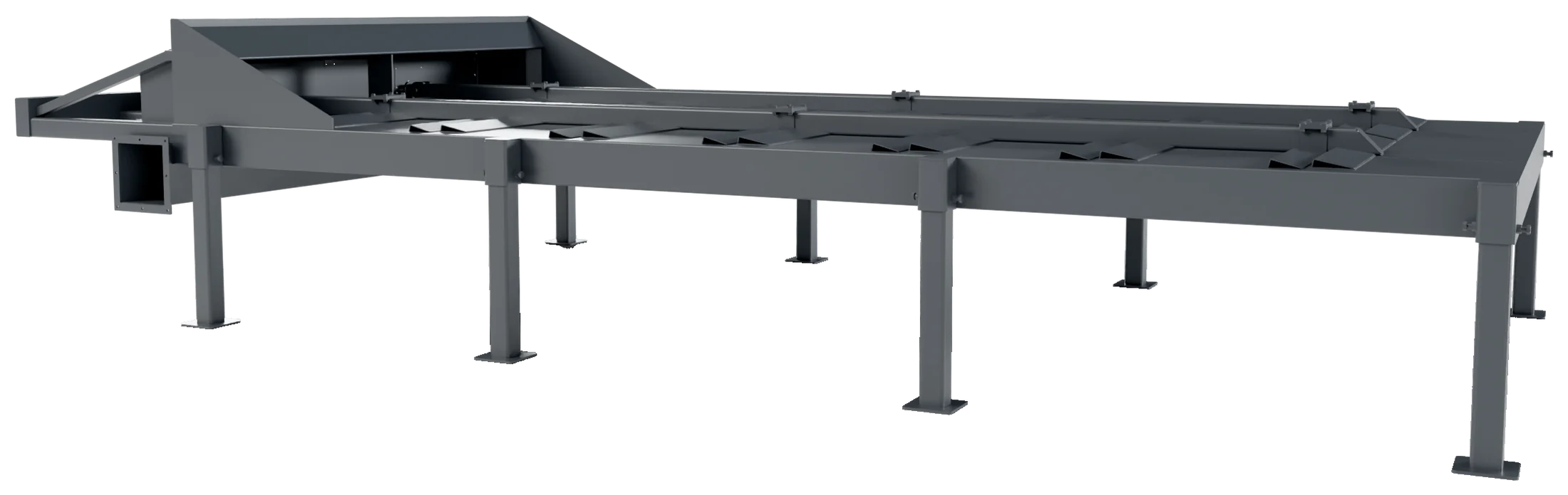

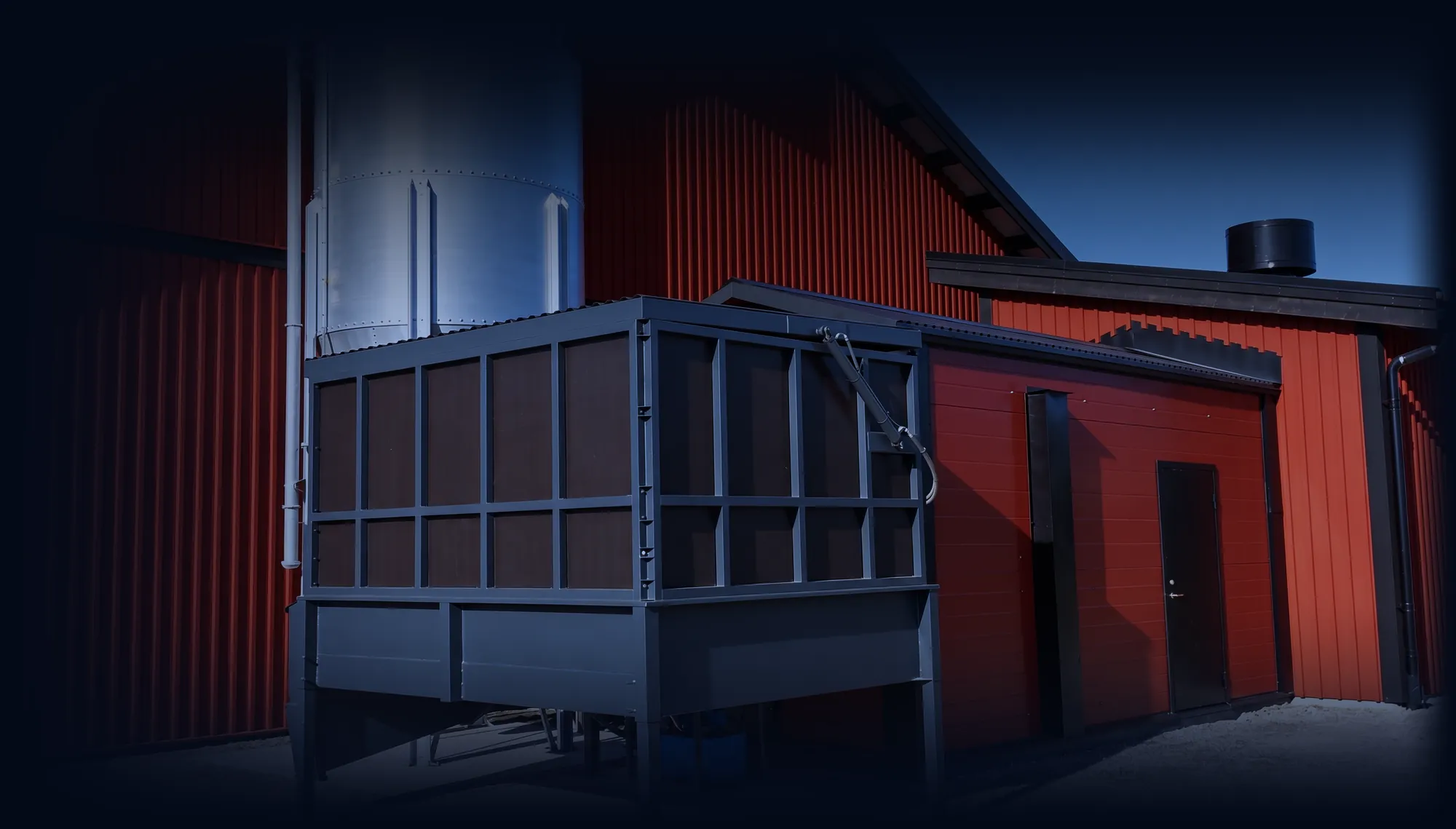

Up to 500 m³ of wood chips in a single store. The store is built to suit your conditions and requirements – the site, the fuel and how you want to fill it. Besides PelleTech's solutions, we also manufacture a range of different stores in-house.
03The volume
About a year's chipsfor a 250 kW boiler.
250kW500m³ of wood chips a year
The rule of thumb: wood chips in cubic metres per year come to roughly twice the boiler output in kilowatts, and up to three times with poorer chips. Actual consumption depends on the quality and moisture content of the fuel and on how the plant is used.
Calculate your store with the rule of thumb04The boilers
Hydraulic scraperspush the fuel forward.
The scraper-floor store is one of the fuel store options for PelleTech's industrial boiler IDRO and the hot-air heater AERO – and for Multiauto.
-

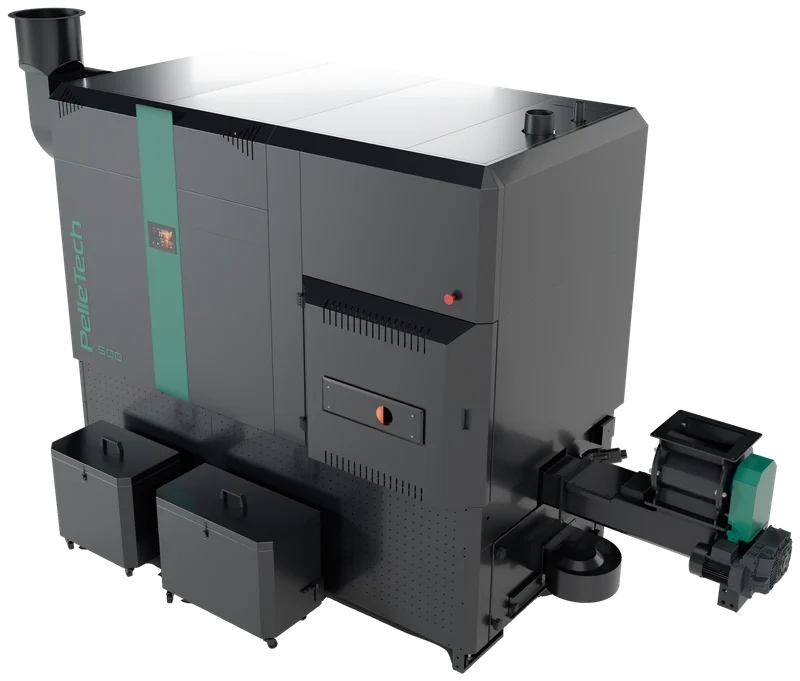

Water-based industrial boilerPelleTech IDRO200 kW–4.6 MW
View IDRO -
Hot-air heaterPelleTech AERO60 kW–8 MW+
View AERO -

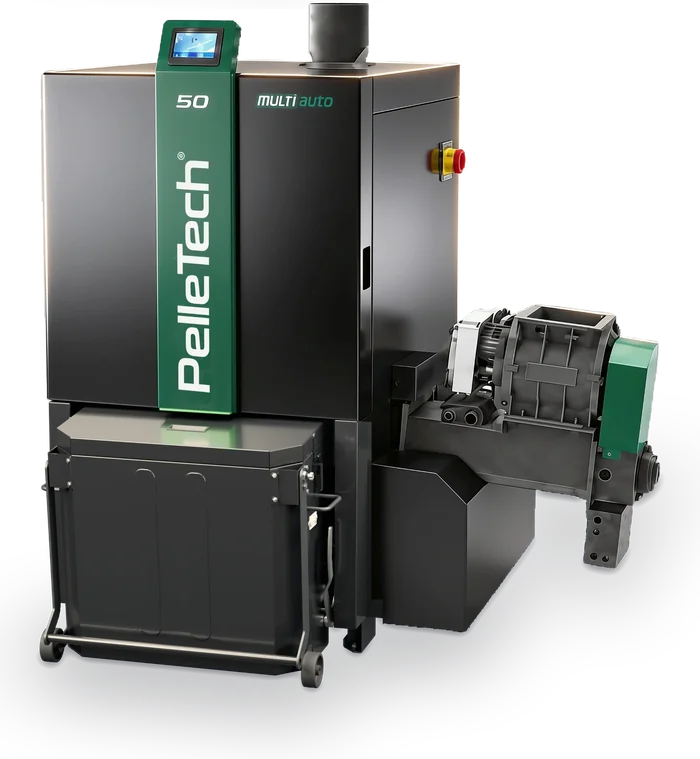

Wood chip boilerPelleTech Multiauto20–200 kW
View Multiauto
In a heating plant, the wood chips can come from a spring agitator, a scraper-floor store or a container-exchange store, where the supplier swaps containers and an intermediate store keeps the feed going. View the heating plants
Not sure which boiler suits you? Choose a wood chip boiler by output
