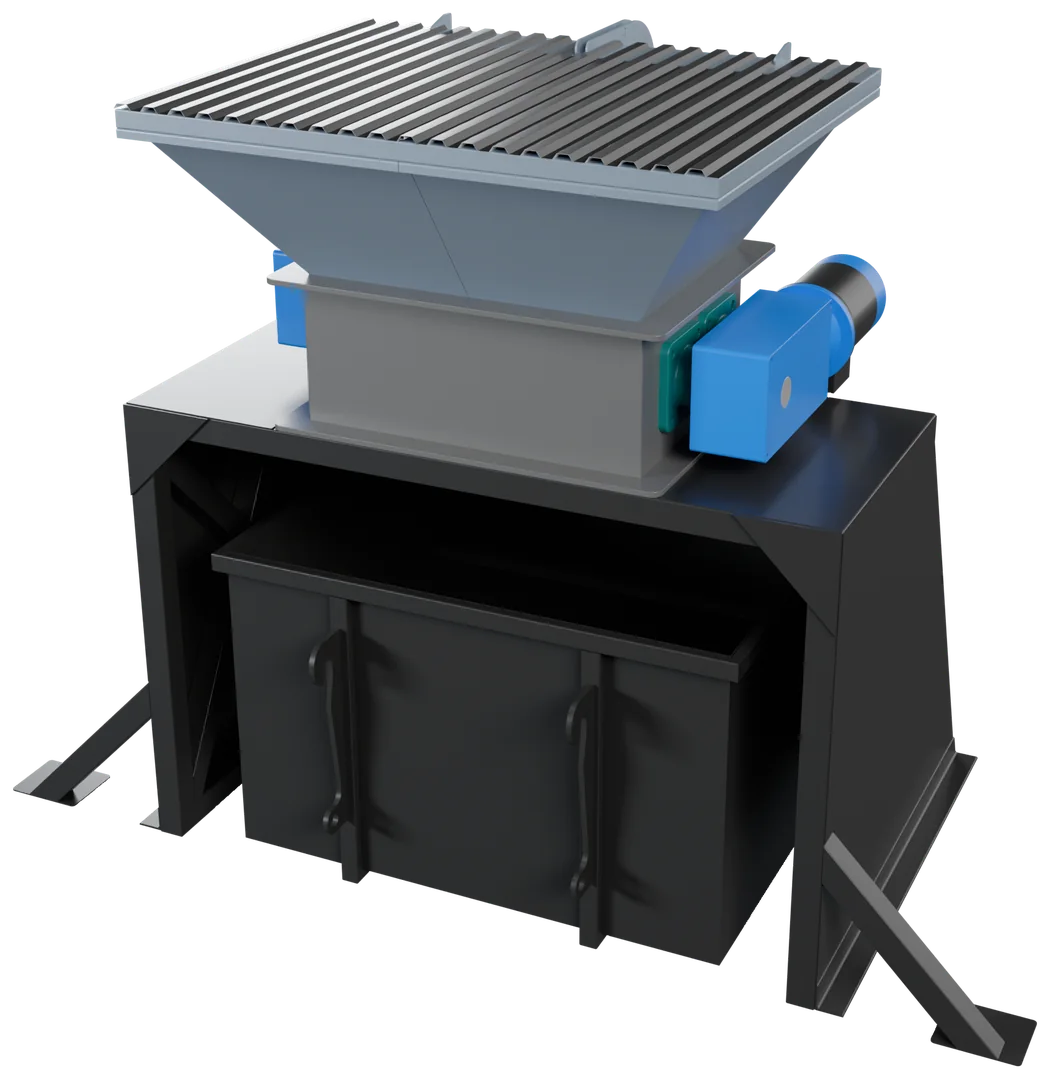

The Shredder
1,200×800mm
Inlet
Two shredder shafts for slaughterhouse waste and wood material.
In-house manufacturing

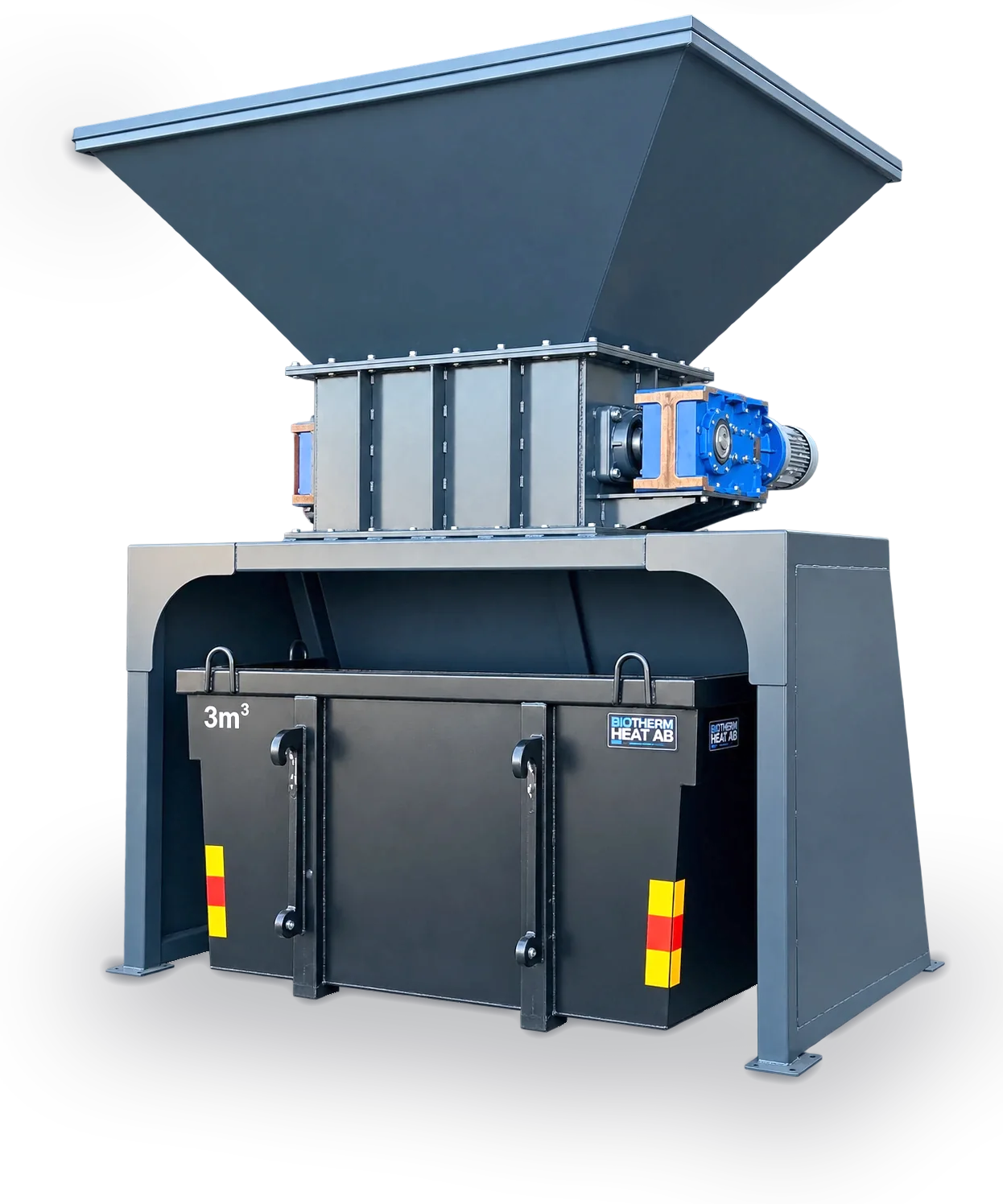

The Shredder
For slaughterhouse waste and wood material. Load it, close the lid and start – then it shreds automatically.
1,200 mmInlet, the Shredder
2,400 mmInlet, the Shredder Wide
- Shredder motors
- 2 × 7.5 kW
- Shredding time
- 0–20 min, adjustable
- Discharge
- 3 m³ bin or conveyor
01Why the Shredder
The wastebecomes heat.
What otherwise costs money to get rid of becomes fuel. The Shredder makes residues burnable – and the boiler turns them into heat you don't have to buy.
-
01
Residues
Pallets, scrap wood and offcuts – what otherwise costs money to get rid of – become fuel for your own boiler.
Pallets · scrap wood · offcuts -
02
Your own forest
If you have your own forest, you shred wood that is not good enough for timber or pulp into your own wood chips – and burn them yourselves.
Wood · planks · branches -
03
Slaughterhouse waste
The Shredder shreds slaughterhouse waste so it can be burned on site and become heat for the plant.
Biotherm burner for slaughterhouse waste

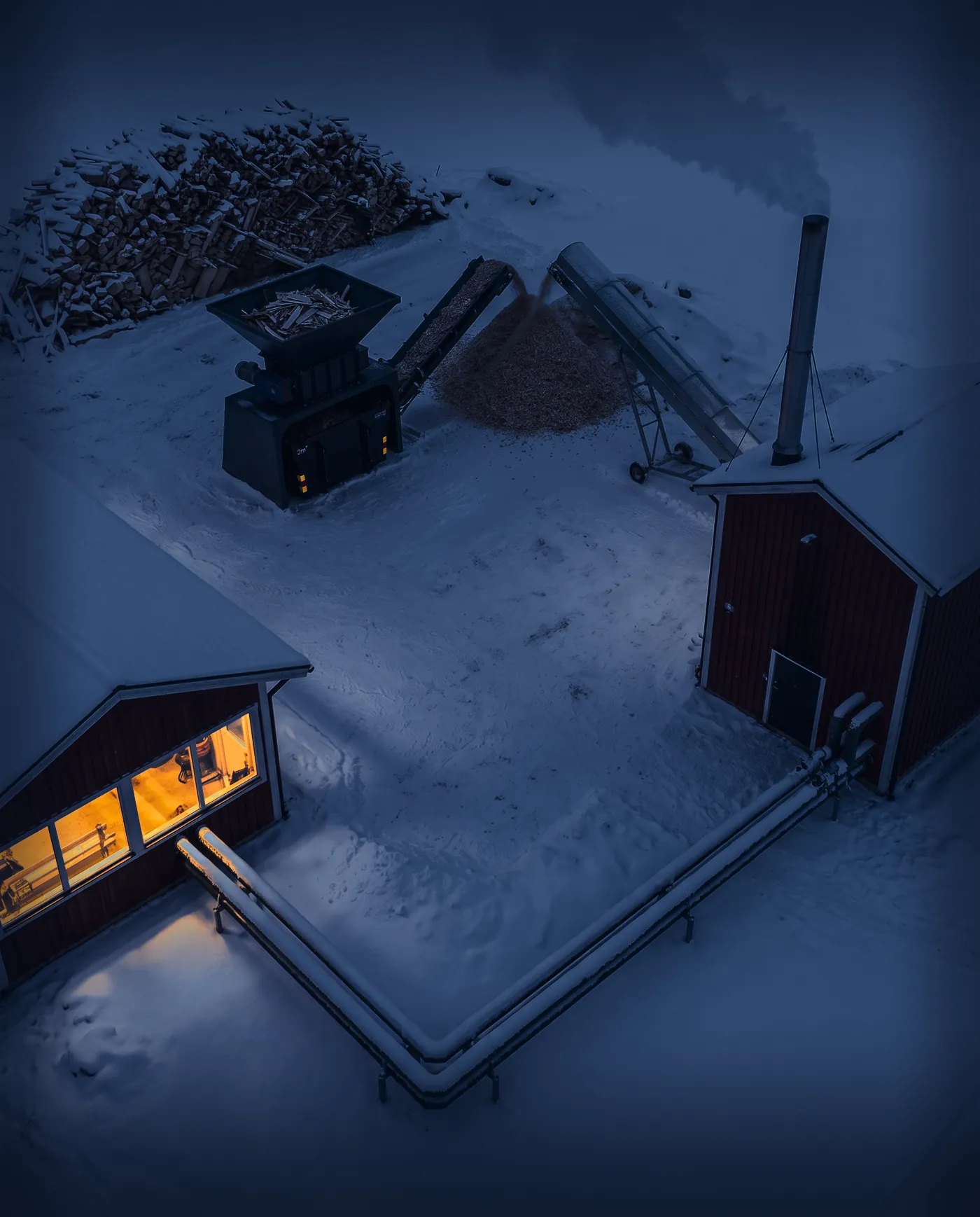

Heat from your own forest
0.15–0.20SEK/kWh
Bought-in wood chips cost somewhat more. Figure from 2023.
- The waste
- A cost to get rid of
- Fuel
- Wood chips
- Bought in
- From your own forest
- The heat
- Bought in
- From your own material
In the long run the waste becomes an asset. We calculate the payback time for your particular plant.
02How it runs
Load.Close.Start.
Shredding runs on a timer – while you get on with other things. The lid is opened and closed by an electric actuator, and the shredder shafts only run when it is closed.
- Inlet
- 1,200 × 800 mm
- Shredder motors
- 2 × 7.5 kW
- Shredding time
- 0–20 min
- Bin
- 3 m³or conveyor belt
3 m³
KA1
Lid closed
Open the lid and load the hopper – pallets and recycled wood.
Runs only with the lid closed.
If the lid is opened during shredding, the shredder shafts stop and the process must be restarted.
- Safety switch
- Confirms the lid is closed before operation.
- Limit switch
- Stops the actuator when the lid is fully open.
- Remote control
- Wireless, for the lid. Available as an accessory.
- KA1 control
- Kross Automatik, with automatic and manual operating modes.
- Start code
- Before every shredding cycle. Status indication, A and B alarms.
- Protection
- Motor protection and emergency stop.
03Two widths
Standardor Wide.
The Shredder comes in two widths – with a shaft width of 1,200 or 2,400 mm. The wide version takes longer planks and longer material that could otherwise get stuck in the hopper.

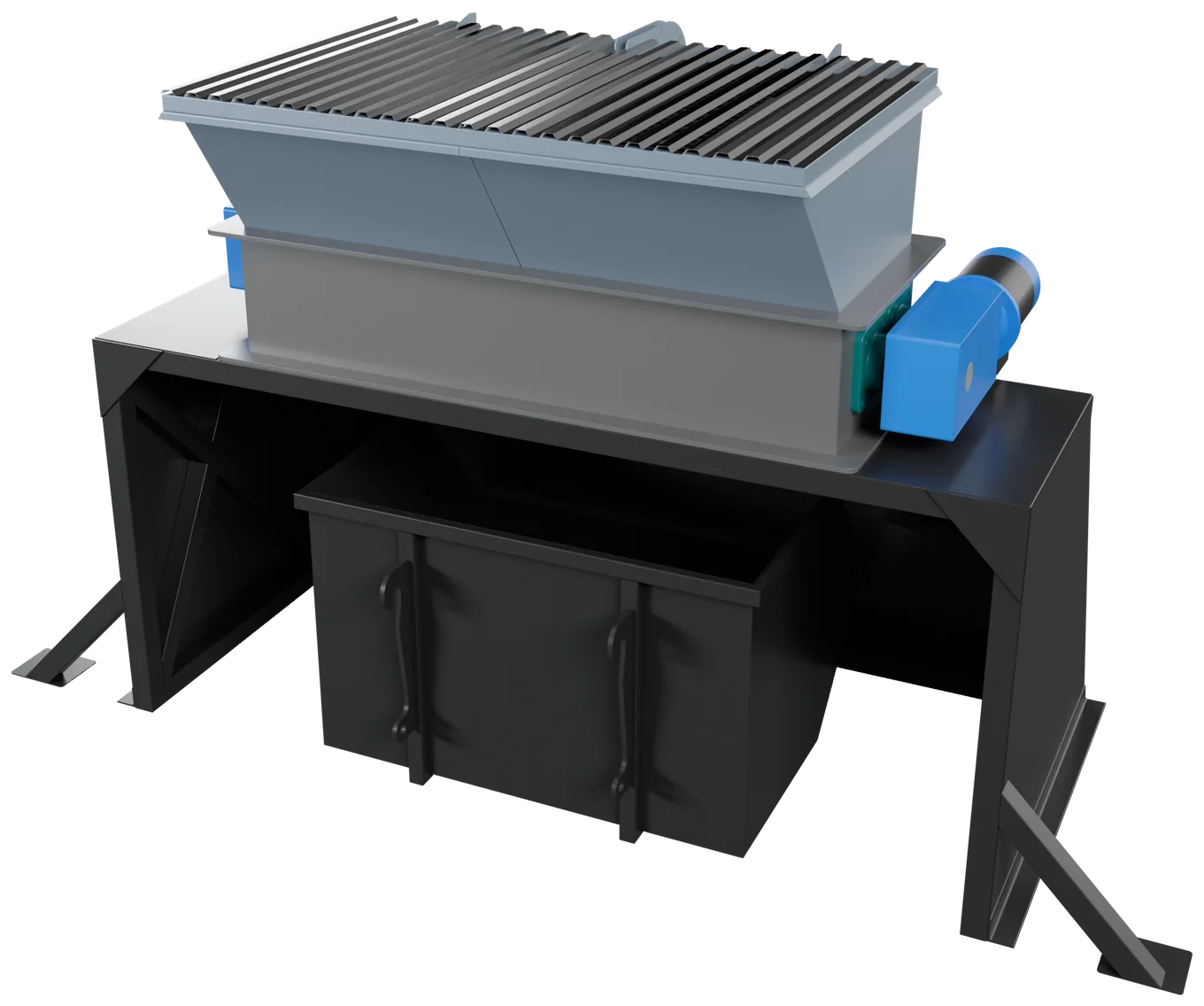

The Shredder Wide
2,400×800mm
Inlet
Double the shaft width – for longer planks and longer material. The hopper has vertical short sides.
Specification
The Shredder
The Shredder Wide
Inlet1,200 × 800 mm2,400 × 800 mm
Shaft width1,200 mm2,400 mm
LoadingHopper with closable lidHopper with vertical short sides and closable lid
MaterialSlaughterhouse waste and wood materialLonger planks and longer material
Same for both
Shredder motors2 × 7.5 kW, 15 kW in total
Shredding time0–20 min, factory-set to 5 min
Lid openingElectric actuator, 0.55 kW*
Control systemKA1 – Kross Automatik, automatic and manual
ProtectionMotor protection and emergency stop
Discharge3 m³ tractor bucket or conveyor
AccessoriesWireless remote control for the lid
* Actuator motor output according to the KA1 User Manual, version 1.0. 15 kW refers to the shredder motors and 3 m³ to the volume of the collection bin – the same for both shredders. Data according to Biotherm Heat AB, subject to change.

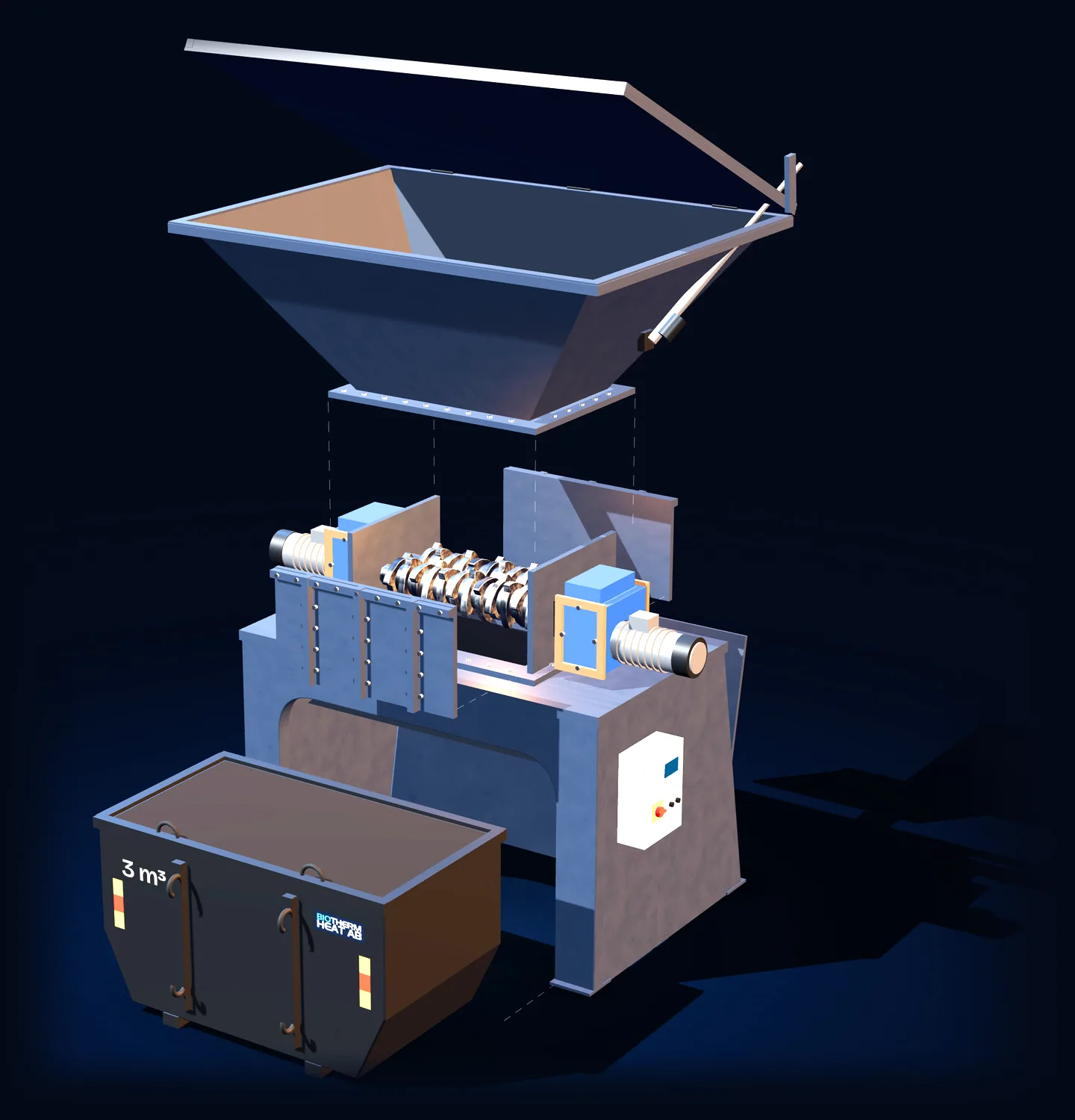

04Construction
Part by part.
The lid, the hopper, the shafts, the motors and the bin, one by one. The Shredder is manufactured in-house.
- 1
Electric lid
0.55 kW actuator and limit switch.
- 2
Hopper
Inlet 1,200 × 800 mm.
- 3
Two shredder shafts
Shred slaughterhouse waste and wood material.
- 4
Shredder motors
2 × 7.5 kW, 15 kW in total.
- 5
KA1 control
Shredding time 0–20 minutes.
- 6
Bin, 3 m³
Or a conveyor belt.
05The cycle
From residueto heat.
What would otherwise cost money to get rid of becomes fuel. The Shredder makes the residues burnable – and the boiler turns them into heat you no longer need to buy.
- 1
Residues
Wood offcuts, pallets and scrap. The Shredder also handles slaughterhouse waste.
- 2
The Shredder
Shreds the material automatically, for a set time.
- 3
Fuel
The boiler burns the shredded material.
- 4
Heat
For the farm or the property.
Money saved
Scrap becomes fuel instead of a cost – and you no longer have to buy the heat.
06Discharge
Choose where thematerial goes next.
01

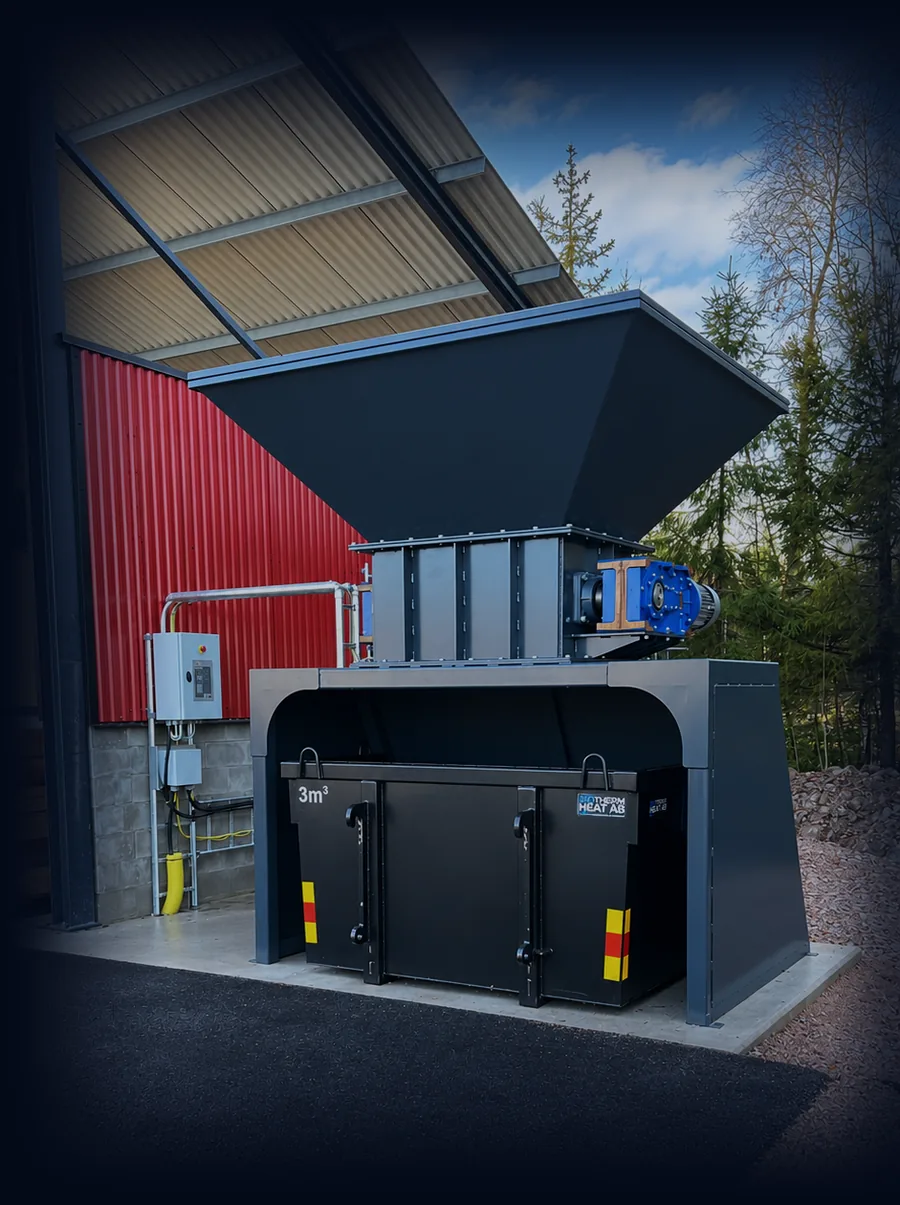

Tractor bucket, 3 m³
The bin stands beneath the Shredder and collects the material for further handling.
02
Conveyor belt

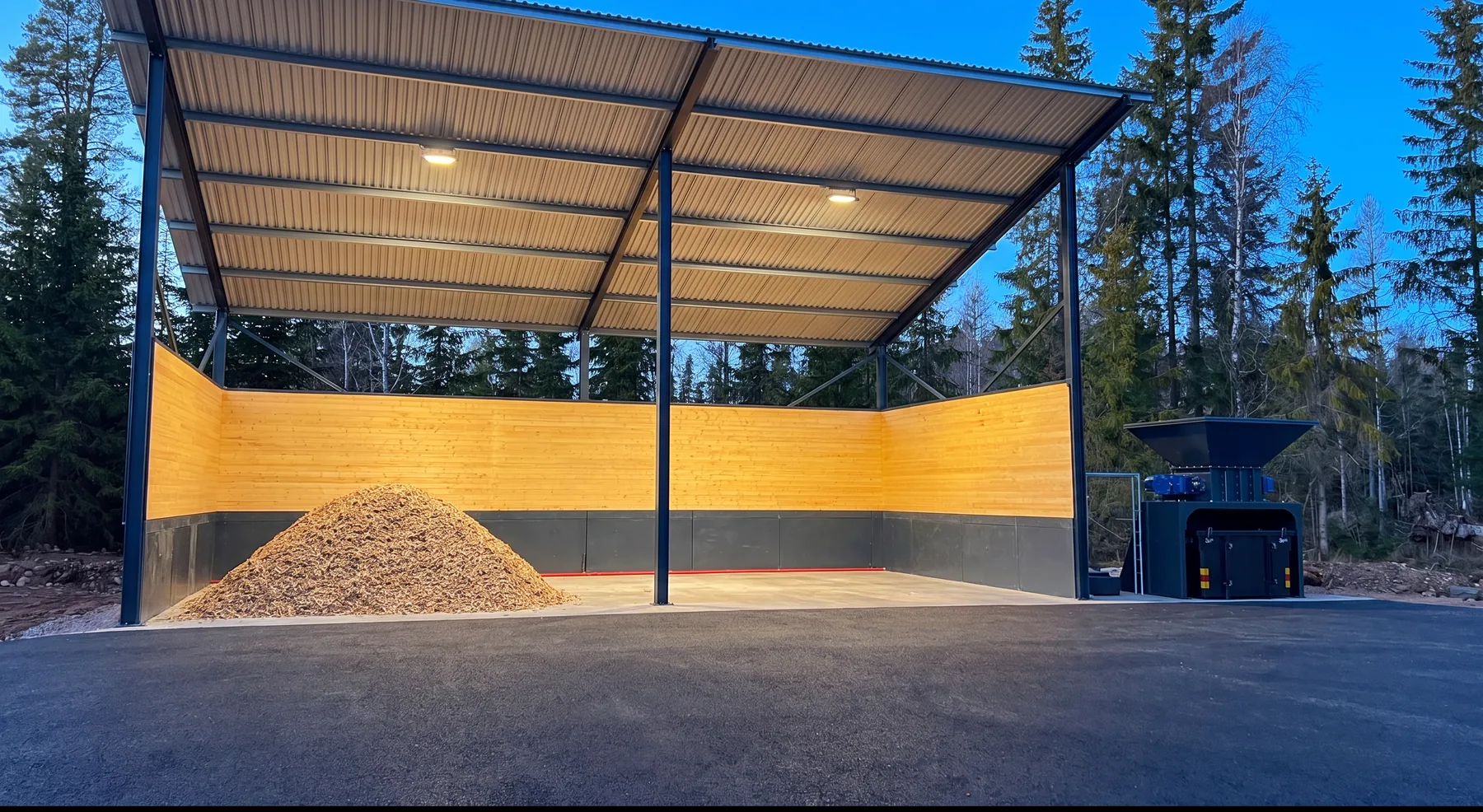

A belt beneath the Shredder carries the material on automatically – for example to a wood chip store when shredding wood.
Free heat-load calculation
Let's calculate your heating.
Tell us what you want to shred and where the material needs to go. We take responsibility for the whole solution – from the Shredder and the fuel store to delivered heat.
