Spring agitator for wood chip stores
The springssweep the floor.
In a spring agitator, the spring arms rotate across the floor of the store and sweep the wood chips in towards the screw, which feeds them on to the boiler.
Store volume, up to180m³
- Diameter
- 2–6 m
- Support floor
- Not required
- Fuel
- Wood chips, G50+
- Design
- Various sizes
01The sweep
Up to six metresin diameter.

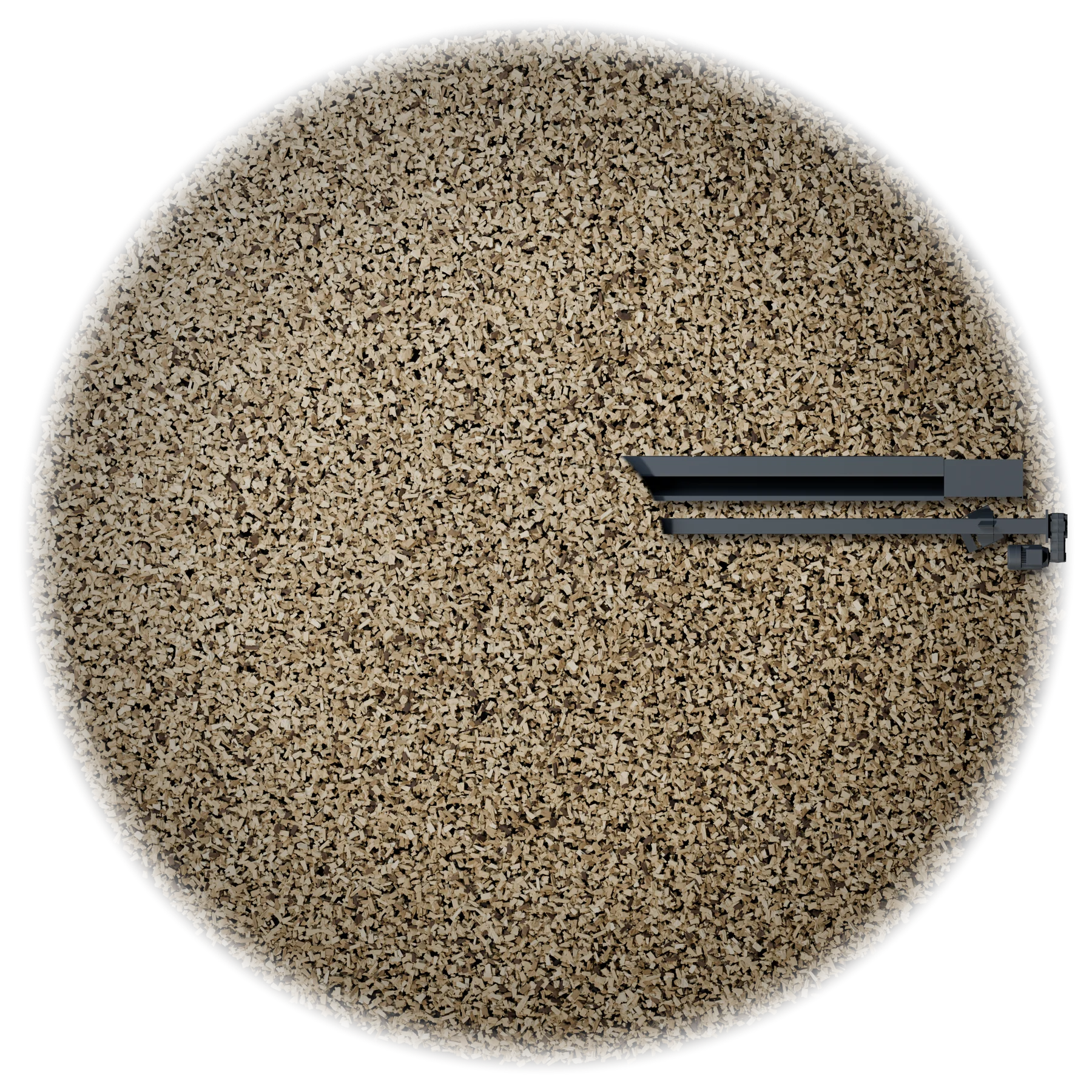

The spring arms rotate around the hub, across the floor of the store, and sweep the wood chips in towards the screw in its channel. The agitator comes in diameters from 2 to 6 m – the standard is 3 or 4 m, for most boilers.
- Diameter
- 2–6 m. Standard 3 or 4 m for most boilers.
- Support floor
- Not required – the spring agitators are stable. A support floor still gives a cleaner store and allows ventilation for drying.
- Volume
- Up to 180 m³ of wood chips in the store.
02The parts
Hub, spring armsand screw.

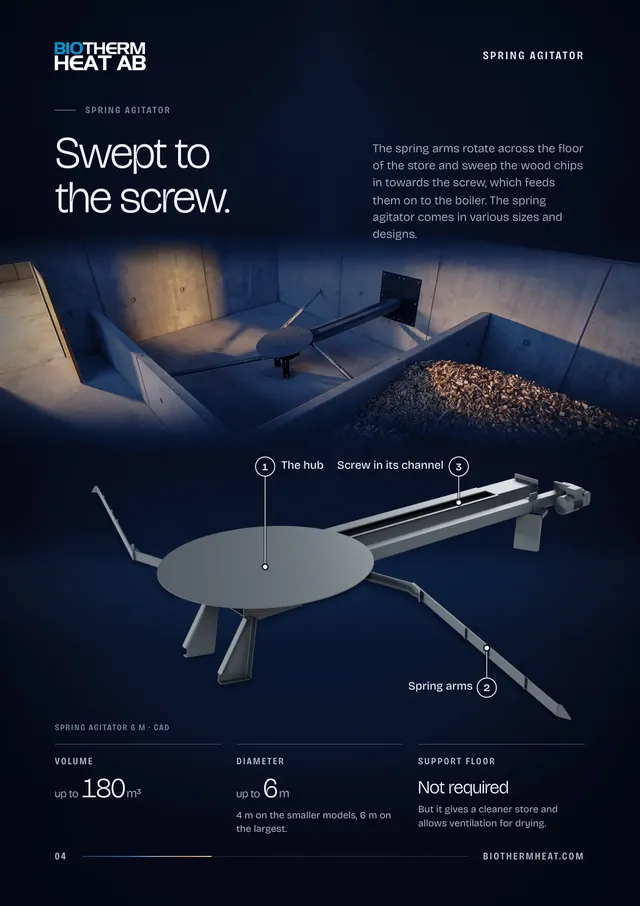

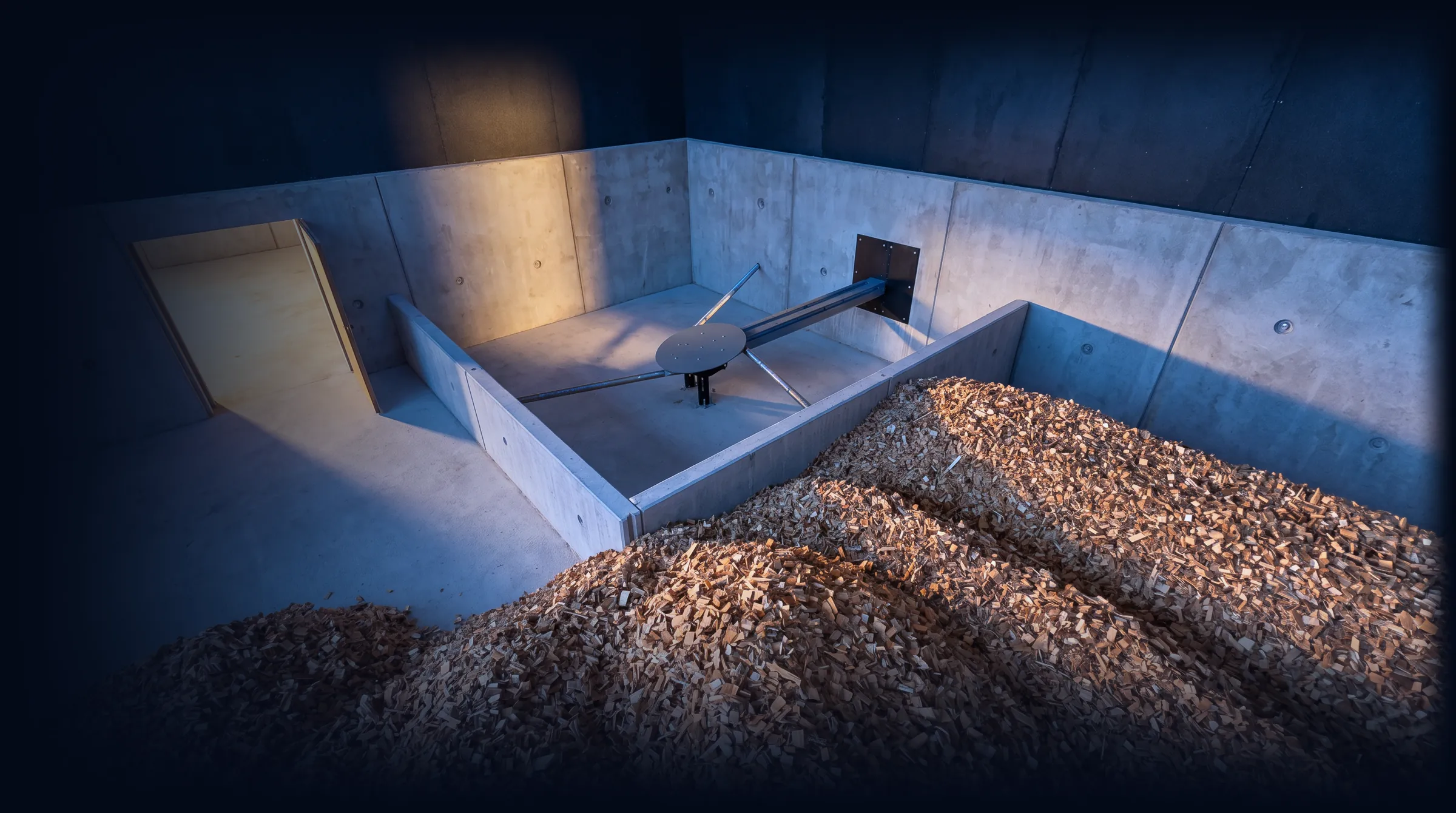

The spring agitator comes in various sizes and designs. Besides PelleTech's solutions, we also manufacture a range of different stores in-house.
1The hub
2Spring arms
3Screw in its channel
- 1The hubThe disc in the centre that the arms rotate around.

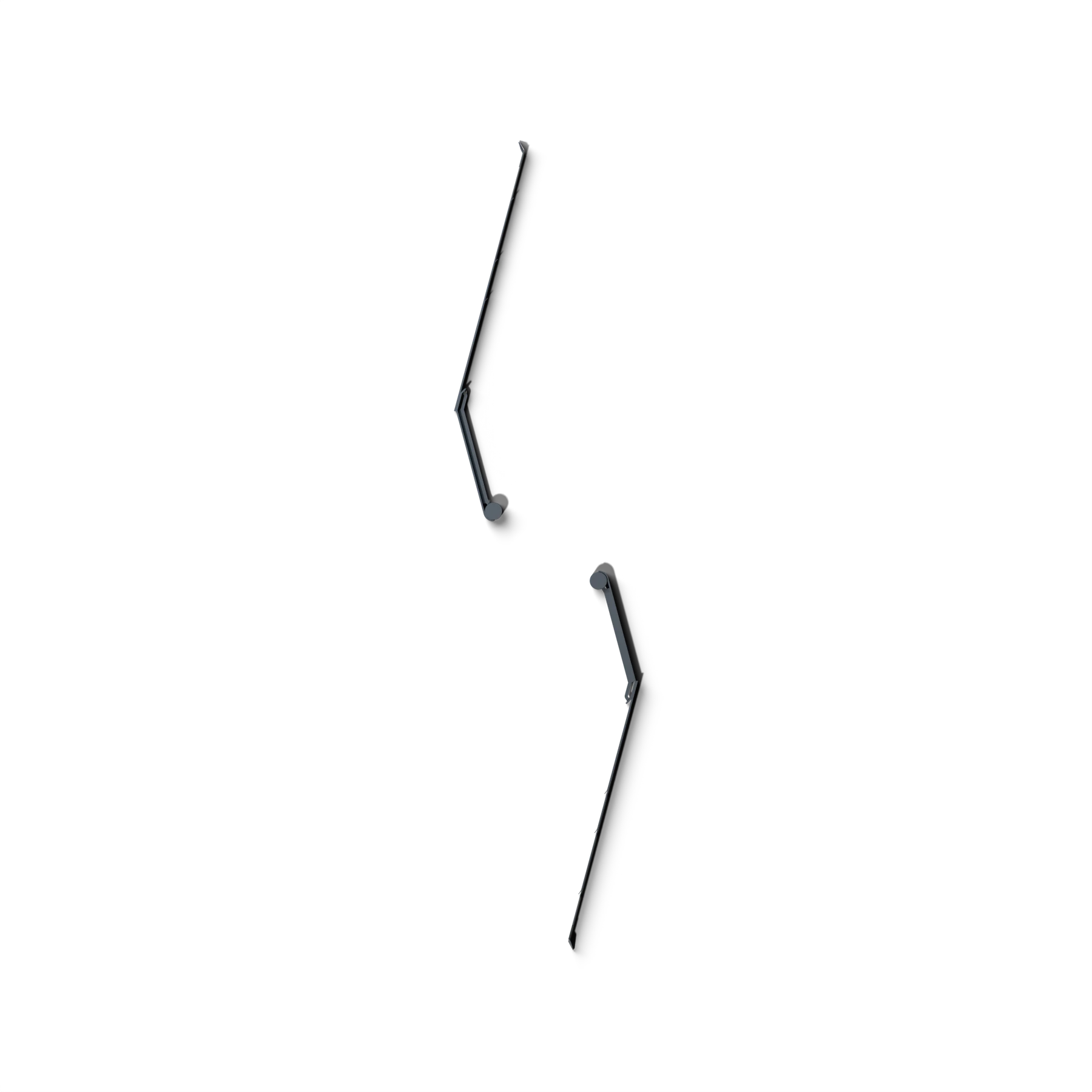

- 2The spring armsSweep the wood chips in towards the screw.
- 3The screw in its channelFeeds the wood chips on to the boiler.
With our own design engineers, workshop and technicians, the feed system can be adapted – for example with a custom-made feed screw for an existing wood chip store.
03The boilers
Standard forMultiauto.
The standard solution for Multiauto is a spring agitator with a screw straight from the store to the boiler. The spring agitator is also one of the fuel store options for IDRO and AERO.
-
The standard solutionPelleTech Multiauto20–200 kW
View Multiauto -
Water-based industrial boilerPelleTech IDRO200 kW–4.6 MW
View IDRO -
Hot-air heaterPelleTech AERO60 kW–8 MW+
View AERO
The spring agitator can also sit in the built-in store of a heating plant, under the same roof as the boiler room. View the heating plants
Not sure which boiler suits you? Choose a wood chip boiler by output
04Feed and size
From the screw tothe boiler – and how much.
Discharging the wood chips
- The screw in its channelCarries the wood chips out of the store, towards the boiler.
- The rotary valveFully sealed and safe against burn-back – together with a sprinkler.
- The stoker screwFeeds the fuel into the burner.
For wood chips of size G50+. Larger chip sizes call for larger screws.
The feed system step by stepHow big a wood chip store do you need?
Wood chips in cubic metres per year come to roughly twice the boiler output in kilowatts – up to three times with poorer chips.
A worked example based on the rule of thumb. Actual consumption depends on the quality and moisture content of the fuel and on how the plant is used.
Calculate your store05More fuel stores
Other ways tostore the fuel.
The store is built to suit the site, the fuel and how you want to fill it. Residues can become fuel with our mobile shredder.
