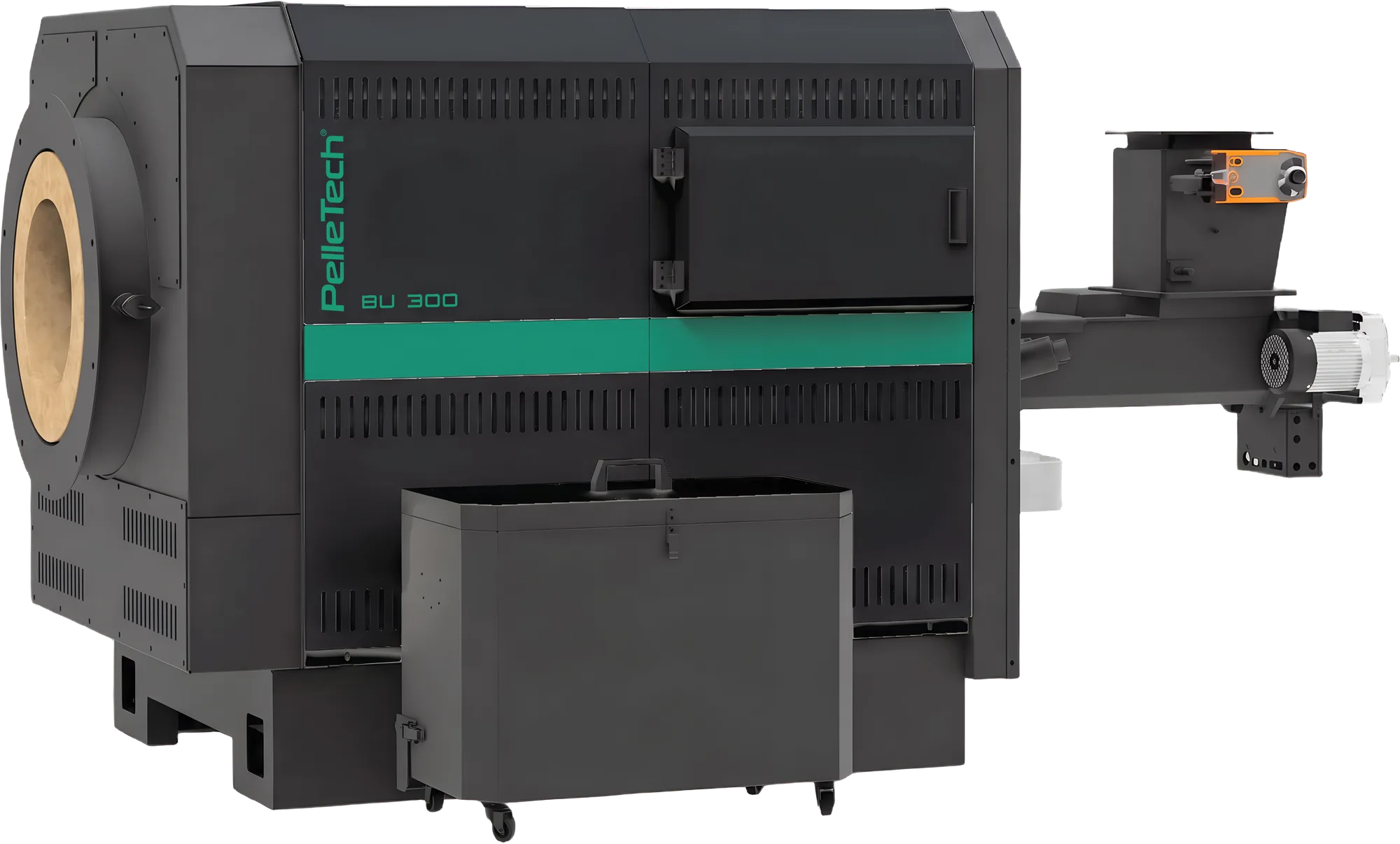

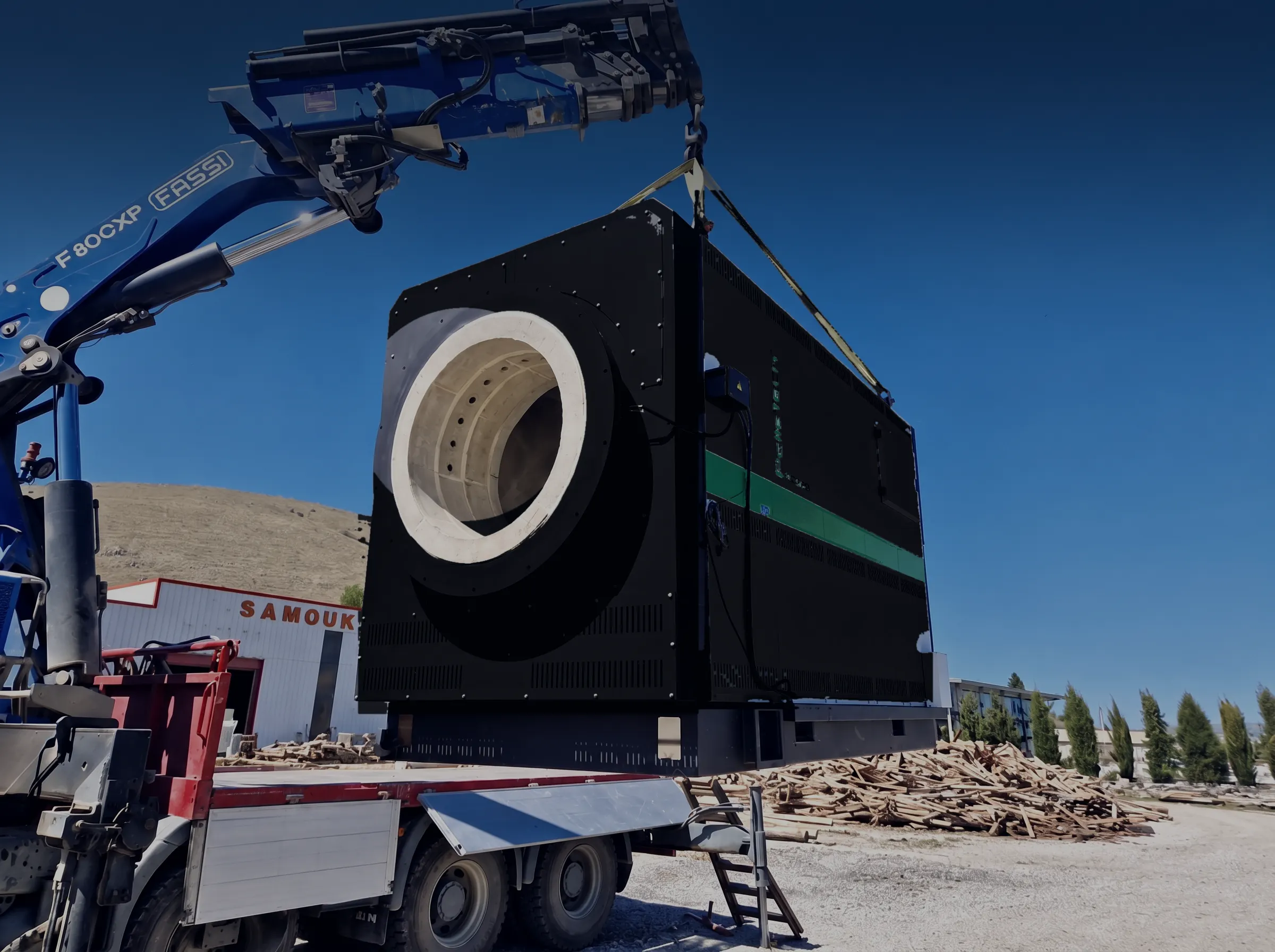

Wood chip burner 200 kW–2.2 MW · PelleTech BU
BU is a burner that connects to your existing industrial boiler. It burns pellets and wood chips in a chamber of its own and blows the flame into the boiler's firebox.
200kW–2.2MWOutput range
PelleTech is now part of BWT
General agent in Scandinavia · Biotherm Heat AB
01Before and after
Same boiler.New fuel.
From oil or gas to pellets or wood chips – without replacing the boiler. BU connects to the boiler, and we supply the fuel store and feed system around it.
| The boiler | The burner | The fuel | The store | The connection | |
|---|---|---|---|---|---|
| Today | For water, steam or thermal oil | Oil or gas | Oil or gas | – | – |
| With BU | Stays | PelleTech BU, 200 kW–2.2 MW | Pellets or wood chipsPurchased wood chips cost approx. SEK 0.30/kWh. | Silo up to 185 m³ or spring agitator | We engineer it for your boiler |
Replacing the boiler as well? See the wood chip boilers, 20 kW–4.6 MW

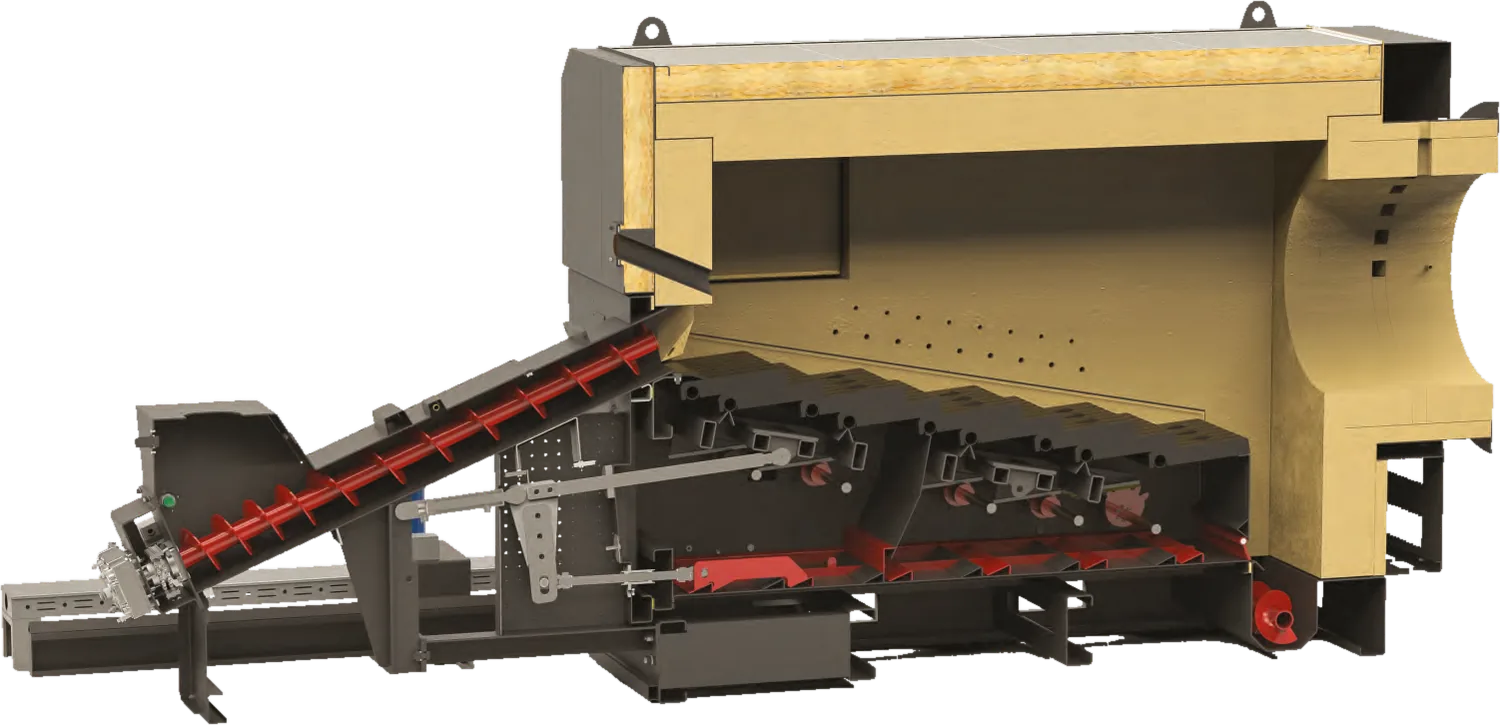

02How BU works
The flame is blowninto your boiler.
The fuel is fed through a burn-back protection device and a stoker screw onto the moving grate. It burns out in the burner's own chamber – and the flame and hot gases pass through the burner throat into the boiler's firebox.
- 1
Burn-back protection
A rotary valve or a spring-return damper seals against the fuel store and stops burn-back.
- 2
Stoker screw
Large diameter, for wood chips up to P45S. Above 500 kW, two screws feed the fuel.
- 3
Moving grate
Moves the fuel forward in several steps as it burns. Grate bars of high-chromium cast steel move along two axes and prevent clinker and blockages.
- 4
Grate drive
Heavy-duty gear motors up to 500 kW, hydraulics above 500 kW.
- 5
Combustion air
A speed-controlled fan supplies the primary air below the grate. Secondary and tertiary air are controlled separately.
- 6
Refractory double wall
Two layers: refractory cement with a high alumina content, and insulating cement.
- 7
Burner throat
Here the flame and hot gases leave the burner and are blown into the firebox of your boiler.
- 8
Ash discharge
A reinforced screw continuously removes the ash from the chamber.
03Sizes
Eight sizes.The same principle.
The burner throat is where BU meets the boiler – from Ø 340 to 980 mm. We calculate which size your boiler needs.
BU 950
- Output
- 950 kW
- Length × width × height
- 4,450 × 2,558 × 1,860 mm
- Weight
- 4,200 kg
- Grate drive
- Hydraulic, twin stoker screws
| Gear motor drives the grate | Hydraulic drive and twin stoker screws | |||||||
|---|---|---|---|---|---|---|---|---|
| Model | BU 200 | BU 300 | BU 500 | BU 700 | BU 950 | BU 1150 | BU 1750 | BU 2200 |
| Output, kW | 200 | 300 | 500 | 700 | 950 | 1,150 | 1,750 | 2,200 |
| Length L, mm | 2,436 | 2,628 | 2,934 | 4,000 | 4,450 | 4,450 | 4,900 | 5,260 |
| Width W, mm | 1,615 | 1,705 | 1,793 | 1,150 | 2,558 | 2,758 | 2,828 | 2,828 |
| Height H, mm | 1,235 | 1,335 | 1,400 | 1,760 | 1,860 | 1,860 | 2,225 | 2,325 |
| Throat Ø D, mm | 340 | 340 | 450 | 580 | 640 | 640 | 780 | 980 |
| Weight, kg | 1,300 | 1,600 | 2,100 | 3,500 | 4,200 | 5,000 | 7,000 | 8,000 |
- Fuel
- Pellets and wood chips
- Wood chips
- Up to P45S
- Ignition
- Moisture content up to W50
Data according to PelleTech's technical specification, subject to change. Final data for your plant is provided at the design stage.
04Construction and operation
Robust in alleight sizes.
The same principle from 200 kW to 2.2 MW. The larger burners have twin stoker screws and a hydraulic grate drive.

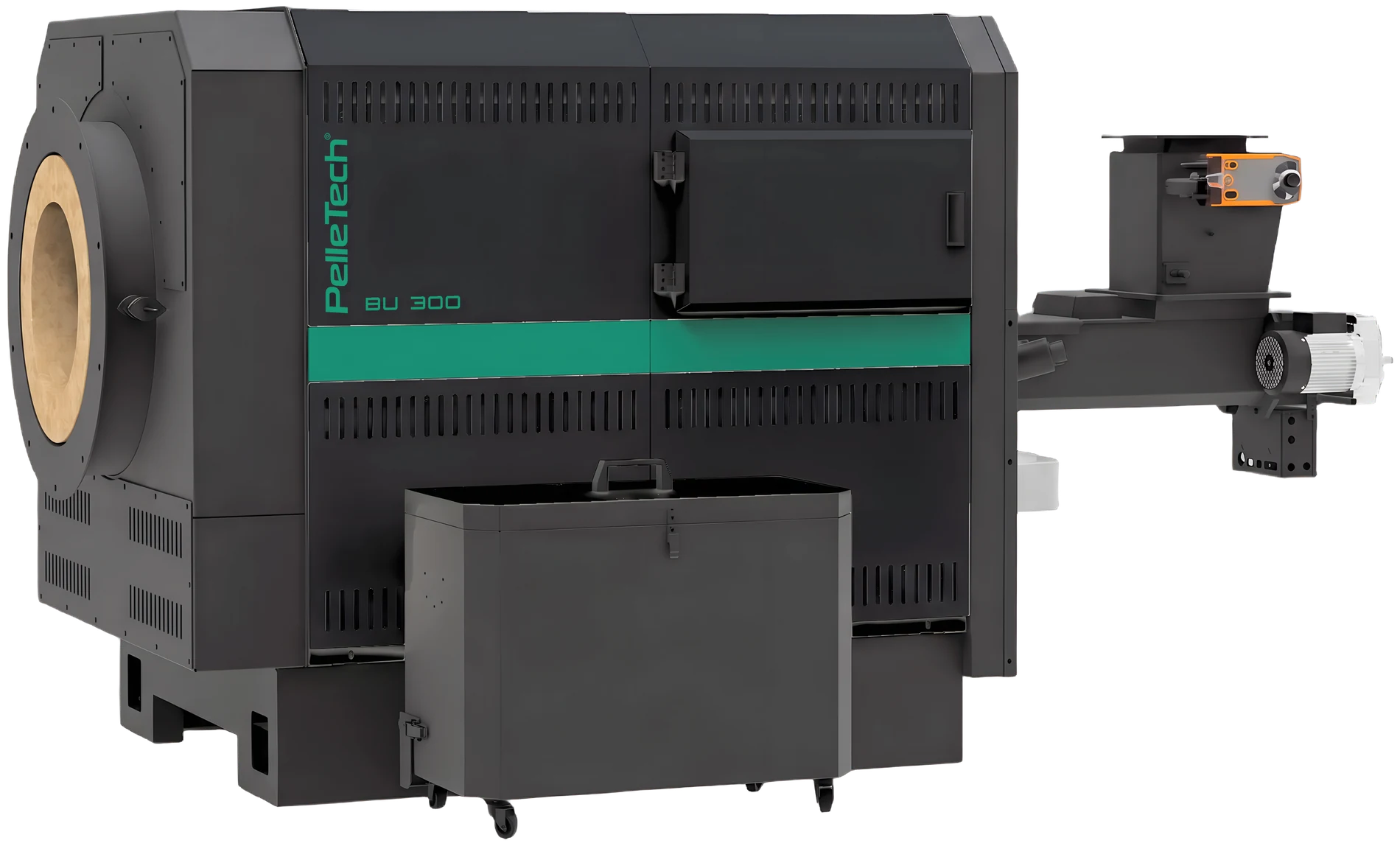

- ABurner throat
- Refractory-lined. Diameter D, 340–980 mm depending on size.
- BAsh container
- The ash screw fills a large container on wheels, for long periods without maintenance.
- CFuel inlet
- This is where the transfer screw from the fuel store connects, single or double.
- DStoker screw
- Gear motor with high torque and low energy consumption.
Control and operation
- Ignition
- Hot-air ignition – ignites fuel with a moisture content of up to W50.
- Temperature
- A sensor in the chamber for precise control.
- Remote monitoring
- The app, as an option: real-time operating data, alarms, remote start and stop, and remote support.
- Manufacturing
- In accordance with the Machinery Directive 2006/42/EC.
Options and fuel stores
- Lambda sensor
- Adjusts combustion for the best possible efficiency.
- Touchscreen, 4.3 inch
- Temperature, load, fuel, O2 and flue gas temperature.
- Fuel store
- Spring agitator or silo, with single or double transfer screw.
05The whole chain
The whole chain.One responsibility.
We engineer the connection of BU to your existing boiler and supply the whole plant around it – from the fuel store to the heat in your process.
- 01
Fuel store
Silo up to 185 m³ or spring agitator.
- 02
Burner
PelleTech BU, 200 kW–2.2 MW.
- 03
Existing boiler
Your boiler for water, steam or thermal oil.
- 04
Installation
Assembly, commissioning and fine-tuning.
- 05
Heat out
To the process, the dryer or the building.
Applications
Conversion
From oil or gas to pellets or wood chips.
Steam
Burners for industrial steam boilers.
Thermal oil
Heat for processes using thermal oil.
Drying
Hot flue gases for drying plants.
PelleTech · Industrial boiler
IDRO
The water-based boiler for industry, for high outputs and many fuels.
- Wood chips
- Pellets
200 kW–4.6 MWView product
Biotherm Heat · Tanks
Accumulator tanks
The tank stores the heat from the boiler and smooths out the peaks.
- Wood chips
- Pellets
- Firewood
- Horse manure
300–20,000 lView product
PelleTech, maker of BU, is part of BWT. Biotherm Heat AB is PelleTech's general agent in Scandinavia.
Free heat-load calculation
Let's calculate your heating.
Tell us about your boiler and what it heats, and we will work out which BU fits – and the fuel store around it.
